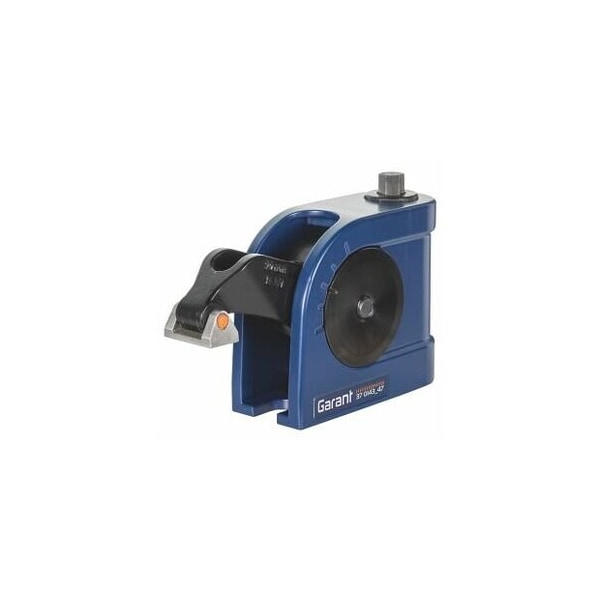

Compact Clamp, Reach: 47mm
Mfr # 370143 47
Zoro # G514823482
product price:Â $359.99
/ea
Free Shipping & Returns
Key Features
Thread Size
M12
Reach
47 mm
Max. Clamping Force
16 kN
Length
95 mm
Overall Height
81 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 370143 47
- Zoro #
- G514823482
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Thread Size
- M12
- Length
- 95 mm
- Overall Height
- 81 mm
- Overall Width
- 40 mm
Details
- Item
- Compact clamp
- Reach
- 47 mm
- Max. Clamping Force
- 16 kN
- Max. Torque
- 105 N·m
Description
Advantage: Compact design, dirt-repellent and chip-repellent. Height scale permits quick pre-setting of the clamping height. Captive pressure piece. Pressure piece adapters are attached by a magnetic insert. Easy assembly using the clamping arm. Material: Body and pressure arm of heat treatable steel. Supplied with: Compact clamp, T-nut for width 14 mm and screw M12. Optional extras: Pressure piece set No. 370148. Clamping height S: 0 90 mm Length L: 95 mm Width B: 40 mm Height H: 81 mm maximum clamping force: 16 kN maximum torque: 105 Nm
