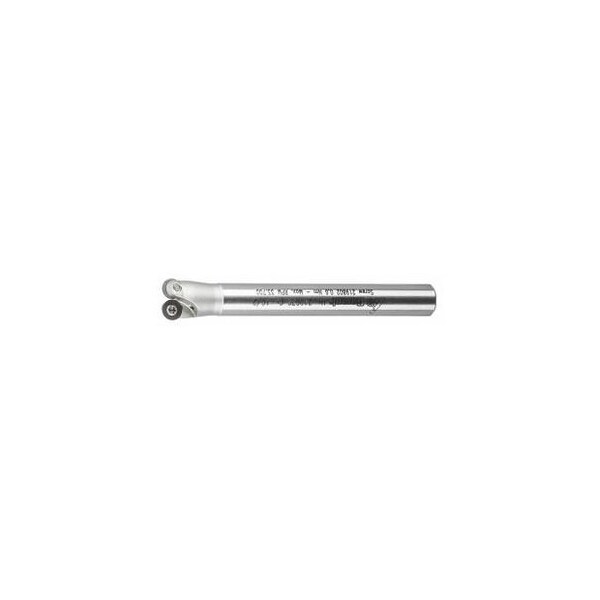

Copy Mill, Plain Shank, for RD. Inserts, 10mm Diameter, 2 Inserts
Mfr # 212070 10/2
Zoro # G016120140
product price:Â
$
221.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 27°
Shank Dia.
8 mm
Cutting Dia.
10 mm
Insert Screw
219802 (6IP; 0.6 Nm)
Overall Length
70 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212070 10/2
- Zoro #
- G016120140
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Shank Dia.
- 8 mm
- Cutting Dia.
- 10 mm
- Overall Length
- 70 mm
- Ramping Length for αmax
- 3.72 mm
- Diameter 3
- 5 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 27°
- Insert Screw
- 219802 (6IP; 0.6 Nm)
- Number of Teeth
- 2
- Shank Type
- Plain shank
- Circular Interpolation Milling - Dmin
- 15 mm
- Circular Interpolation Milling - Dmax
- 18 mm
- Tool Exchange
- PowerCard
- Ramping Angle
- 5.37°
- Milling head suitable for insert shape
- Round
- Axial Rake Angle
- 0°
- Fz Helix
- 0.7
- Approach Angle
- 15 – 27°
- Overhang
- 14 mm
- Dia/No. of Cutting Edges
- 10 mm/2
- Coolant Through
- Yes
- Circular interpolation milling ap
- 1.1 mm
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Note: ap max = 1.1 mm. Use GARANT torque screwdriver TQ No. 211750 size 0.6 with bit No. 674252 size 6IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D3: 5 mm Overhang L1: 14 mm Overall length Ltot: 70 mm ShankDs h6: 8 mm Circular interpolation millingDmin: 15 mm
