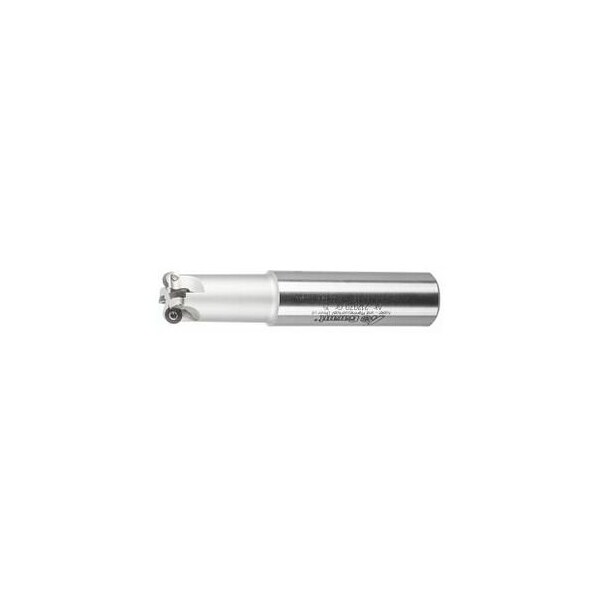

Copy Mill, Plain Shank, for RD. Inserts, 15mm Diameter, 4 Inserts
- Mfr # 212070 15
- Zoro # G816120180
product price:Â
$
254.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 27°
Shank Dia.
16 mm
Overall Length
80 mm
Number of Teeth
4
Insert Screw
219802 (6IP; 0.6 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212070 15
- Zoro #
- G816120180
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Shank Dia.
- 16 mm
- Overall Length
- 80 mm
- Cutting Dia.
- 15 mm
- Diameter 3
- 10 mm
- Ramping Length for αmax
- 8.72 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 27°
- Number of Teeth
- 4
- Insert Screw
- 219802 (6IP; 0.6 Nm)
- Axial Rake Angle
- 0°
- Fz Helix
- 0.7
- Tool Exchange
- PowerCard
- Approach Angle
- 15 – 27°
- Circular Interpolation Milling - Dmax
- 28 mm
- Dia/No. of Cutting Edges
- 15 mm/4
- Milling head suitable for insert shape
- Round
- Coolant Through
- Yes
- Shank Type
- Plain shank
- Circular interpolation milling ap
- 1.1 mm
- Ramping Angle
- 2.3°
- Circular Interpolation Milling - Dmin
- 25 mm
- Overhang
- 30 mm
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Note: ap max = 1.1 mm. Use GARANT torque screwdriver TQ No. 211750 size 0.6 with bit No. 674252 size 6IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D3: 10 mm Overhang L1: 30 mm Overall length Ltot: 80 mm ShankDs h6: 16 mm Circular interpolation millingDmin: 25 mm
