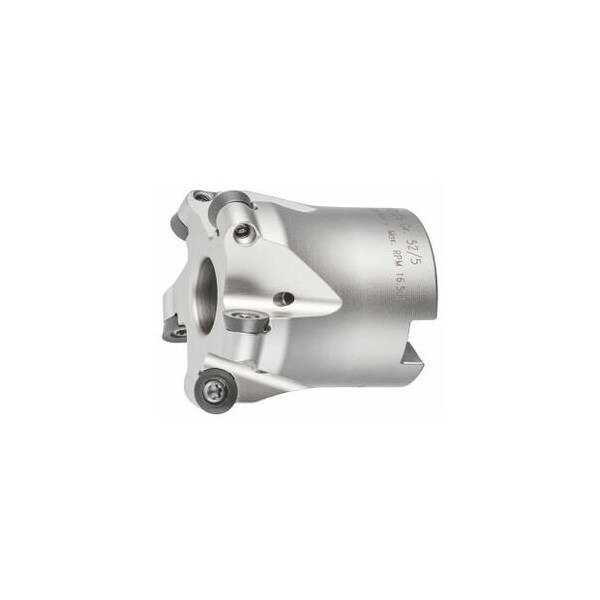

Copy Mill, with Bore, for RD. Inserts, 52mm Diameter, 5 Inserts
Mfr # 212125 52/5
Zoro # G216120186
product price:Â
$
331.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 30°
Cutting Dia.
52 mm
Number of Teeth
5
Overall Length
50 mm
Insert Screw
219804 (15IP; 3.8 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212125 52/5
- Zoro #
- G216120186
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 52 mm
- Overall Length
- 50 mm
- Diameter 3
- 42 mm
- Free length
- 50 mm
- Ramping Length for αmax
- 39.45 mm
- Mounting Bore Dia.
- 22 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 30°
- Number of Teeth
- 5
- Insert Screw
- 219804 (15IP; 3.8 Nm)
- Ramping Angle
- 1.02°
- Circular Interpolation Milling - Dmax
- 102 mm
- Dia/No. of Cutting Edges
- 52 mm/5
- Shank Type
- with bore
- Circular Interpolation Milling - Dmin
- 94 mm
- Tool Exchange
- PowerCard
- Circular interpolation milling ap
- 2 mm
- Approach Angle
- 15 – 30°
- Milling head suitable for insert shape
- Round
- Coolant Through
- Yes
- Fz Helix
- 0.7
- Axial Rake Angle
- 0°
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 5D3: 42 mm Overall length Ltot: 50 mm Mounting bore : 22 mm Circular interpolation millingDmin: 94 mm Circular interpolation millingDmax: 102 mm
