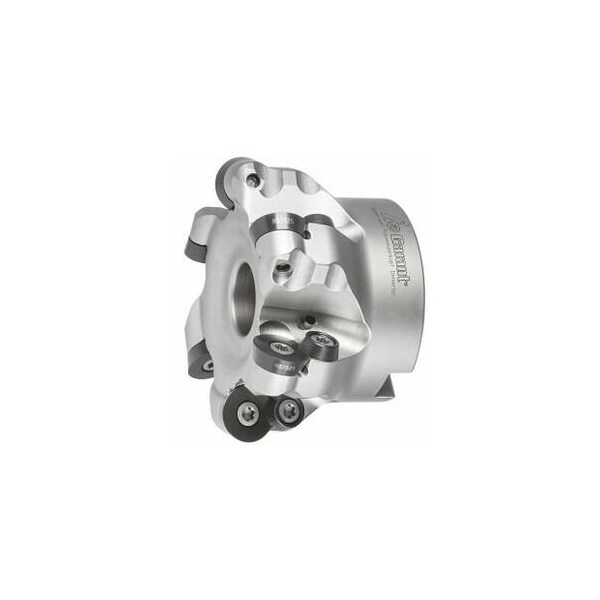

Copy Mill, with Bore, for RD. Inserts, 80mm Diameter, 6 Inserts
Mfr # 212167 80/6
Zoro # G416120221
product price:Â
$
394.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 30°
Overall Length
50 mm
Insert Screw
219800 (20IP; 5.7 Nm)
Cutting Dia.
80 mm
Number of Teeth
6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212167 80/6
- Zoro #
- G416120221
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 50 mm
- Cutting Dia.
- 80 mm
- Free length
- 50 mm
- Mounting Bore Dia.
- 27 mm
- Diameter 3
- 64 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 30°
- Insert Screw
- 219800 (20IP; 5.7 Nm)
- Number of Teeth
- 6
- Coolant Through
- Yes
- Milling head suitable for insert shape
- Round
- Axial Rake Angle
- 7°
- Shank Type
- with bore
- Fz Helix
- 0.7
- Dia/No. of Cutting Edges
- 80 mm/6
- Tool Exchange
- PowerCard
- Approach Angle
- 15 – 30°
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning as the cutting edge wears. Vibration reduction and soft cutter edge entry due to 7 deg. positive setting of the indexable inserts. Application: With pack of insert screws No. 219800 - for securing indexable inserts and retaining washers. Attention: Retaining screws and retaining washers should not be used for inserts with positive geometry. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. ap max = 3.5 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 6D3: 64 mm Overall length Ltot: 50 mm Mounting bore : 27 mm suitable indexable insert: RD..1604 Pack of insert screws: 219800 20IP- 5.7 Nm
