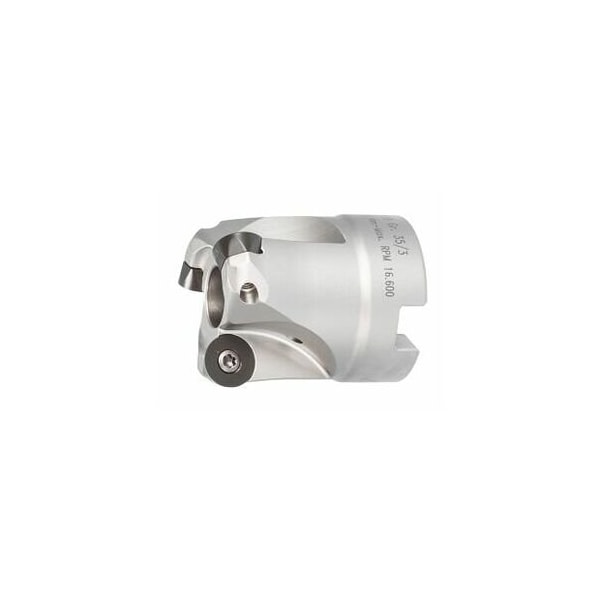

Copy Mill, with Bore, for RP. Inserts, 35mm Diameter, 3 Inserts
Mfr # 212009 35/3
Zoro # G916120165
product price: $321.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 30°
Cutting Dia.
35 mm
Overall Length
40 mm
Number of Teeth
3
Insert Screw
219878 2 (9IP; 2.2 Nm)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212009 35/3
Zoro #
G916120165
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
35 mm
Overall Length
40 mm
Diameter 3
25 mm
Mounting Bore Dia.
16 mm
Free length
40 mm
Ramping Length for αmax
22.45 mm
Details
Cutting Angle
15 – 30°
Item
Copy mill
Number of Teeth
3
Insert Screw
219878 2 (9IP; 2.2 Nm)
Tool Exchange
PowerCard
Fz Helix
0.7
Dia/No. of Cutting Edges
35 mm/3
Ramping Angle
1.79°
Circular Interpolation Milling - Dmin
60 mm
Coolant Through
Yes
Axial Rake Angle
2°
Circular Interpolation Milling - Dmax
68 mm
Shank Type
with bore
Approach Angle
15 – 30°
Milling head suitable for insert shape
Round
Circular interpolation milling ap
2.5 mm
Description
Version: The latest generation of copy and face milling cutters. Indexed round inserts ensure stable conditions and secure the insert against accidental twisting during use. The optimised form fit between the indexable insert and insert seat ensures exceptional process reliability. Note: ap max = 5.0 mm. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 9IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 3D3: 25 mm Overall length Ltot: 40 mm Mounting bore : 16 mm Circular interpolation millingDmin: 60 mm Circular interpolation millingDmax: 68 mm
