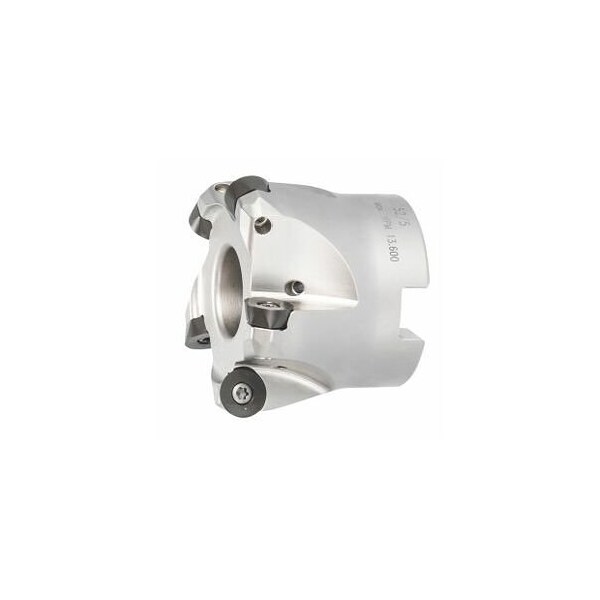

Copy Mill, with Bore, for RP. Inserts, 52mm Diameter, 5 Inserts
Mfr # 212009 52/5
Zoro # G116120200
product price: $426.99
/ea
Free Shipping & Returns
Key Features
Insert Screw
219878 2 (9IP; 2.2 Nm)
Cutting Angle
15 – 30°
Cutting Dia.
52 mm
Overall Length
40 mm
Number of Teeth
5
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212009 52/5
Zoro #
G116120200
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
52 mm
Overall Length
40 mm
Mounting Bore Dia.
22 mm
Diameter 3
42 mm
Ramping Length for αmax
39.45 mm
Free length
40 mm
Details
Insert Screw
219878 2 (9IP; 2.2 Nm)
Cutting Angle
15 – 30°
Item
Copy mill
Number of Teeth
5
Circular Interpolation Milling - Dmin
94 mm
Axial Rake Angle
2°
Approach Angle
15 – 30°
Circular Interpolation Milling - Dmax
102 mm
Fz Helix
0.7
Ramping Angle
1.02°
Coolant Through
Yes
Dia/No. of Cutting Edges
52 mm/5
Milling head suitable for insert shape
Round
Circular interpolation milling ap
2.5 mm
Tool Exchange
PowerCard
Shank Type
with bore
Description
Version: The latest generation of copy and face milling cutters. Indexed round inserts ensure stable conditions and secure the insert against accidental twisting during use. The optimised form fit between the indexable insert and insert seat ensures exceptional process reliability. Note: ap max = 5.0 mm. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 9IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 5D3: 42 mm Overall length Ltot: 40 mm Mounting bore : 22 mm Circular interpolation millingDmin: 94 mm Circular interpolation millingDmax: 102 mm
