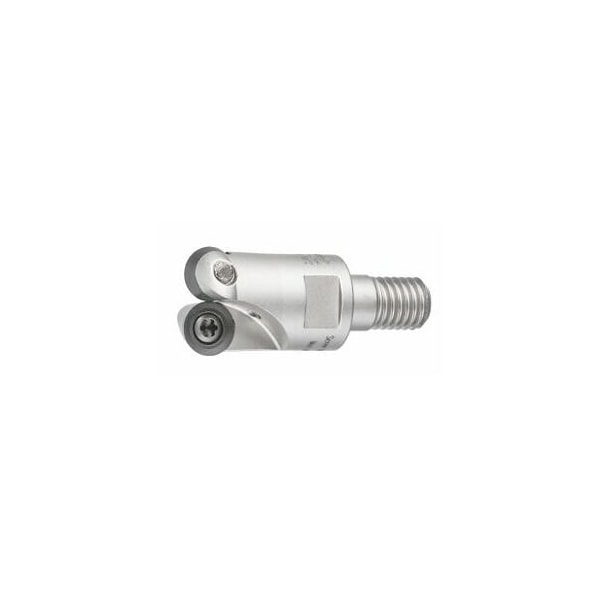

Copy Mill, with Threaded Shank, for RD. Inserts, 20mm Diameter, 2 Inserts
Mfr # 212135 20/2
Zoro # G616120182
product price:Â
$
203.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 30°
Cutting Dia.
20 mm
Number of Teeth
2
Overall Length
30 mm
Insert Screw
219804 (15IP; 3.8 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212135 20/2
- Zoro #
- G616120182
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 20 mm
- Overall Length
- 30 mm
- Diameter 3
- 10 mm
- Diameter 1
- 10.5 mm
- Ramping Length for αmax
- 7.45 mm
- Free length
- 30 mm
- Diameter 2
- 17.7 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 30°
- Number of Teeth
- 2
- Insert Screw
- 219804 (15IP; 3.8 Nm)
- Circular Interpolation Milling - Dmax
- 38 mm
- Fz Helix
- 0.7
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
- Circular interpolation milling ap
- 2 mm
- Milling head suitable for insert shape
- Round
- Ramping Angle
- 5.37°
- Circular Interpolation Milling - Dmin
- 30 mm
- Axial Rake Angle
- 0°
- Mounting Thread
- M10
- Shank Type
- with threaded shank
- Dia/No. of Cutting Edges
- 20 mm/2
- Approach Angle
- 15 – 30°
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D1 h6: 10.5 mmD2: 17.7 mmD3: 10 mm Overall length Ltot: 30 mm Mounting thread M: M10
