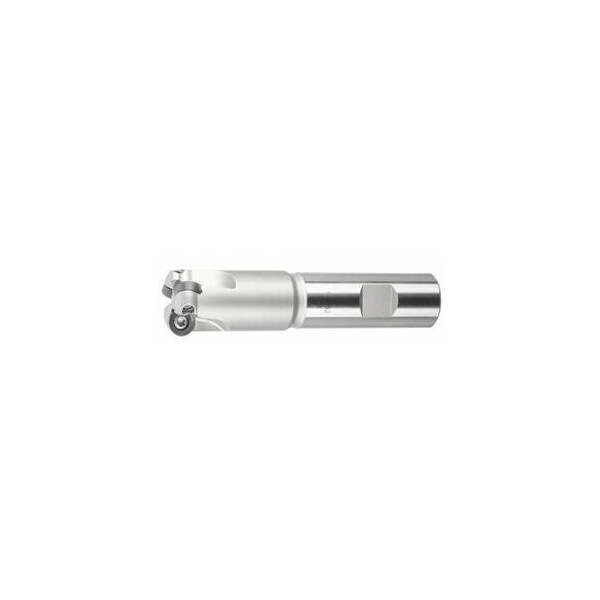

Copy Mill, with Weldon Flat, for RD. Inserts, 25mm Diameter, 3 Inserts

Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Vibration reduction and soft cutter edge entry due to 7 deg. positive setting of the indexable inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 3D3: 15 mm Overhang L1: 48 mm Overall length Ltot: 100 mm ShankDs h6: 20 mm suitable indexable insert: RD..1003
