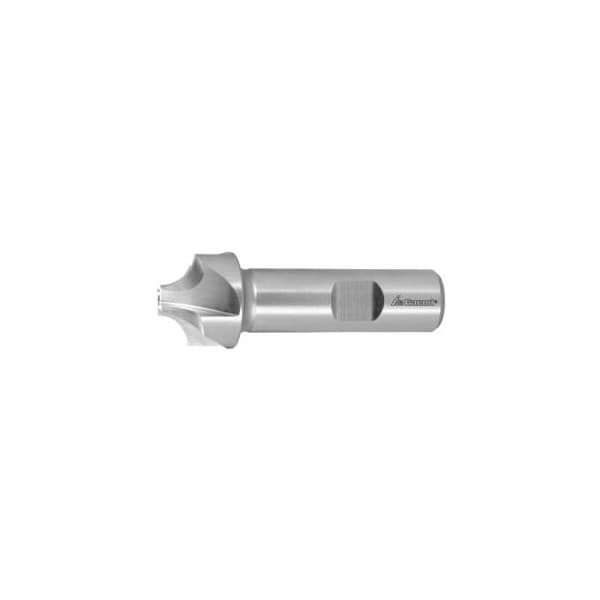

Corner Rounding Cutter, Uncoated, 16 mm
Mfr # 194220 16
Zoro # G714391620
product price:Â $280.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100 mm
Shank Dia.
25 mm
Number of Flutes
6
Radius
16 mm
Finish - Machining
Uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 194220 16
- Zoro #
- G714391620
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 100 mm
- Shank Dia.
- 25 mm
- Radius
- 16 mm
- Length of Cut
- 16 mm
- Large Diameter
- 48 mm
- Radius Milling
- forwards
- Small Diameter
- 16 mm
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 16 mm
Details
- Number of Flutes
- 6
- Finish - Machining
- Uncoated
- Shank Type
- DIN 1835 B to h6
- Coolant Through
- No
- End Mill Style
- Corner Radius
- Cutting Direction
- horizontal
- End Mill Material
- Cobalt High Speed Steel
- Color Ring
- without
- Hole Tolerance
- H11
- Feed Fz For Side Milling in Steel < 750Â N/mm2
- 0.053 mm
- Shank Tolerance
- h6
- Type of Product
- corner rounding cutter, HSS-Co5
- Correction Factor Fz
- 1.25
- Feed Fz For Side Milling in Steel < 750 N/mm2
- 0.053 mm
Description
Straight flutes. Special surface treatment. Application: For rounding and deburring edges and contours.
