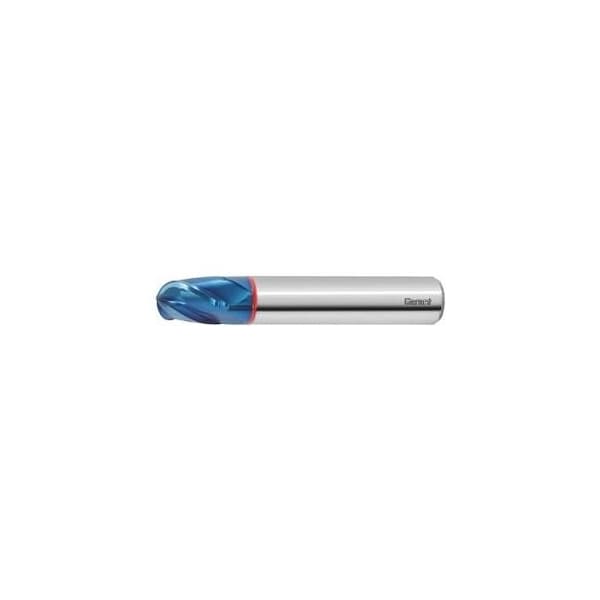

Diabolo Solid Carbide Ball Nose End Mill, for Hard Steels, TiAlN Coated, 2 mm
Mfr # 207472 2
Zoro # G614380748
product price:
$
63.39
/ea
Key Features
Milling Diameter
2 mm
Overall Length
50 mm
Number of Flutes
4
End Mill Style
Ball
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 207472 2
- Zoro #
- G614380748
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Ball
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Type
- H
- Coolant Through
- No
- Series
- Diabolo
- Helix Angle
- 30 Degrees
- End Mill Material
- Carbide
- Cutting Direction
- horizontal, oblique and vertical
- Shank Type
- DIN 6535 HA to h6
- Shank Tolerance
- h6
- Type of Product
- Ball-nosed slot drill
- Color Ring
- red
- Feed Fz For Copy Milling in Steel < 65 HRC
- 0.005 mm
- Correction Factor Fz
- 1.25
- Feed Fz For Side Milling in Steel < 65 HRC
- 0.005 mm
Description
GARANT Diabolo: Special geometry, newly developed coating and carbide for hard machining. 4 Center cutting edges to the Center. Therefore can be used as a true 4-edge drill at all depths of cut. Tolerance: Radius contour = ±0.005 mm. No. of teeth Z: 4 Helix angle: 30 degrees No. of teeth Z: 4 Flute length Lc: 4 mm Overall length L: 50 mm Shank Dia. Ds: 3 mm Feed fz for side milling in steel < 65 HRC: 0.005 mm Feed fz for copy milling in steel < 65 HRC: 0.005 mm
