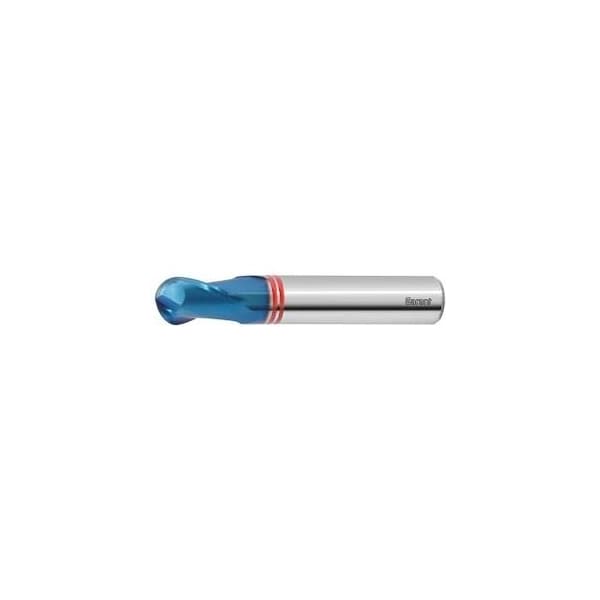

Diabolo Solid Carbide Ball Nose End Mill, for Hard Steels, TiAlN Coated, 3 mm
- Mfr # 207347 3
- Zoro # G314383254
product price:
$
133.99
/ea
Free Shipping & Returns
Key Features
Overall Length
50 mm
Milling Diameter
3 mm
Number of Flutes
2
End Mill Style
Ball
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 207347 3
- Zoro #
- G314383254
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 2
- End Mill Style
- Ball
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Overall Reach
- 5 mm
- Series
- Diabolo
- Cutting Direction
- horizontal, oblique and vertical
- Shank Type
- DIN 6535 HA to h5
- Type
- H
- End Mill Material
- Carbide
- Coolant Through
- No
- Helix Angle
- 30 Degrees
- Correction Factor Fz
- 1.25
- Feed Fz For Copy Milling in Steel < 65 HRC
- 0.019 mm
- Shank Tolerance
- h5
- Color Ring
- red
- Type of Product
- Ball-nosed slot drill
- Feed Fz For Side Milling in Steel < 65 HRC
- 0.019 mm
Description
GARANT Diabolo: Special geometry, coating and carbide for hard machining. Solid carbide high precision ball nose slot drill with radius Dia. and contour variations within the um range. Tolerance: Radius contour = ±0.005 mm. No. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Flute length Lc: 3 mm Overhang length L1 incl. recess: 5 mm Recess Dia. D1: 2.85 mm Overall length L: 50 mm Shank Dia. Ds: 3 mm
