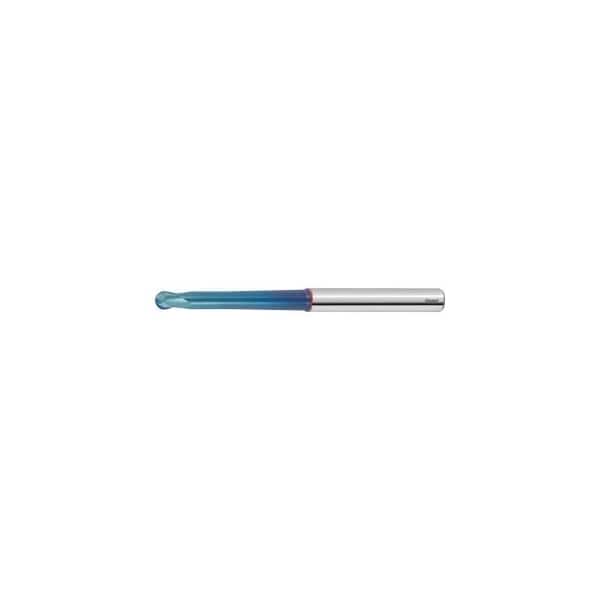

Diabolo Solid Carbide Ball Nose End Mill, for Hard Steels, TiAlN Coated, 4 mm
- Mfr # 207372 4
- Zoro # G014383387
product price:
$
153.99
/ea
Free Shipping & Returns
Key Features
Overall Length
80 mm
Milling Diameter
4 mm
Number of Flutes
2
End Mill Style
Ball
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 207372 4
- Zoro #
- G014383387
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 2
- End Mill Style
- Ball
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Feed Fz For Copy Milling in Steel < 65 HRC
- 0.019 mm
- Color Ring
- red
- Correction Factor Fz
- 1.25
- Shank Tolerance
- h6
- Type of Product
- Ball-nosed slot drill
- Series
- Diabolo
- Helix Angle
- 30 Degrees
- Overall Reach
- 16 mm
- Cutting Direction
- horizontal, oblique and vertical
- Coolant Through
- No
- End Mill Material
- Carbide
- Shank Type
- DIN 6535 HA to h6
- Type
- H
Description
GARANT Diabolo: Special geometry, coating and carbide for hard machining. Taper transition with 1.5 Deg angle a. Tolerance: Radius contour = ±0.005 mm. No. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Flute length Lc: 5 mm Overhang length L1 incl. recess: 16 mm Recess Dia. D1: 3.8 mm Overall length L: 80 mm Shank Dia. Ds: 6 mm
