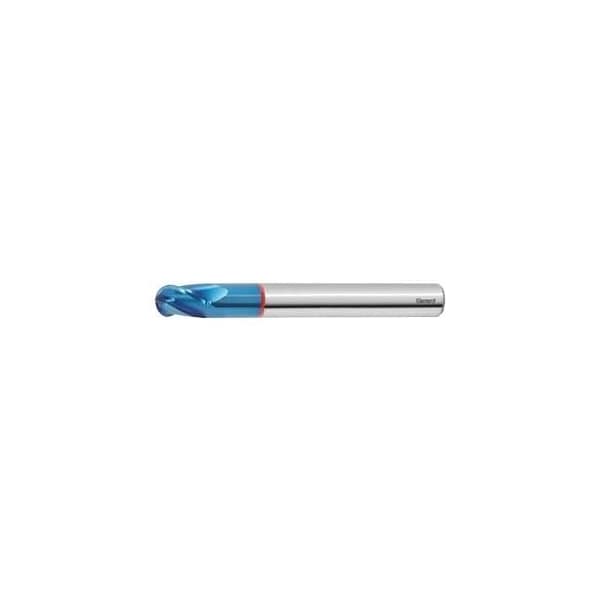

Diabolo Solid Carbide Ball Nose End Mill, for Hard Steels, TiAlN Coated, 4 mm
Mfr # 207476 4
Zoro # G914380967
product price: $85.55
/eaKey Features
Milling Diameter
4 mm
Overall Length
75 mm
End Mill Style
Ball
Finish
TiAlN
End Mill Cutting Type
HPC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 207476 4
- Zoro #
- G914380967
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 4 mm
- Overall Length
- 75 mm
- Corner Radius
- 2 mm
- Shank Dia.
- 4 mm
- Length of Cut
- 8 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 8 mm
- Maximum Cutting Depth Ap Max When Copying
- 0.2 mm
- Min. Cutting Depth
- 0.01 mm
- Tolerance Nominal Diameter
- f8
Description
GARANT Diabolo: Special geometry, newly developed coating and carbide for hard machining. 4 Center cutting edges to the Center. Therefore can be used as a true 4-edge drill at all depths of cut. Tolerance: Radius contour = ±0.005 mm. No. of teeth Z: 4 Helix angle: 30 degrees No. of teeth Z: 4 Flute length Lc: 8 mm Overall length L: 75 mm Shank Dia. Ds: 4 mm Feed fz for side milling in steel < 65 HRC: 0.019 mm Feed fz for copy milling in steel < 65 HRC: 0.019 mm
