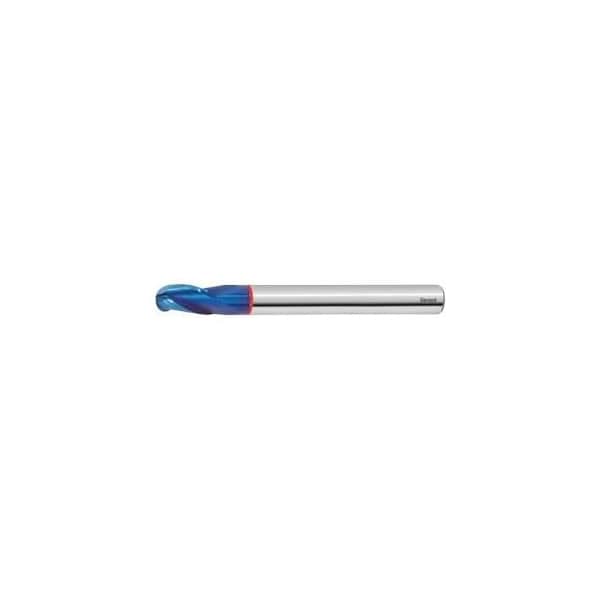

Diabolo Solid Carbide Ball Nose End Mill, for Hard Steels, TiAlN Coated, 6 mm
Mfr # 207424 6
Zoro # G014385206
product price: $79.65
/ea
Free Shipping & Returns
Key Features
Correction Factor Fz
1.25
Feed Fz For Side Milling in Steel < 65 HRC
0.048 mm
Color Ring
red
Maximum Cutting Depth Ap Max When Side Milling
12 mm
Shank Tolerance
h6
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
207424 6
Zoro #
G014385206
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
12 mm
Maximum Cutting Depth Ap Max When Copying
0.3 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
f8
Milling Diameter
6 mm
Corner Radius
3 mm
Shank Dia.
6 mm
Overall Length
100 mm
Length of Cut
12 mm
Description
Special geometry, coating and carbide for hard machining. 3 end face edges up to the Center. Can therefore be used as a true 3-flute drill in all cutting depths. Tolerance: Radius contour = ±0.005 mm. No. of teeth Z: 3 Helix angle: 30 degrees No. of teeth Z: 3 Flute length Lc: 12 mm Overall length L: 100 mm Shank Dia. Ds: 6 mm Feed fz for side milling in steel < 65 HRC: 0.048 mm Feed fz for copy milling in steel < 65 HRC: 0.048 mm
