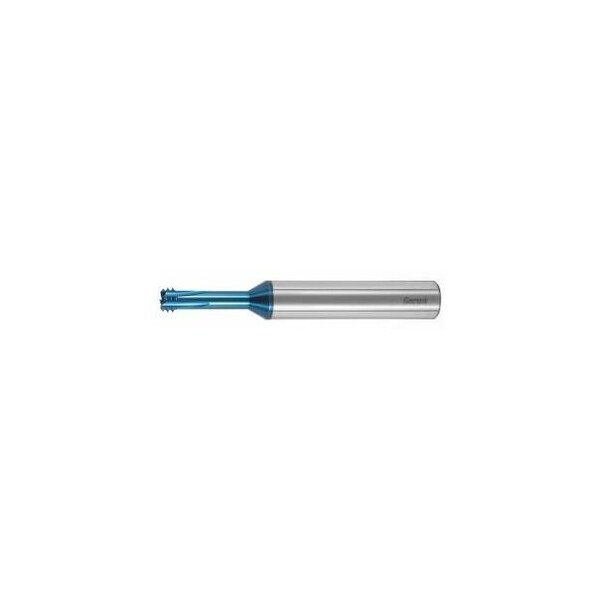

Diabolo Solid Carbide End Cutting Thread Mill, M16-2 Thread Size

Tool for combined production of bore, chamfer and thread in a single work step. Pre-drilling is no longer required. The innovative Center cutting edge geometry makes this tool a specialist in thread production in hardened and hard-to-machine materials. The TiAlN high-performance coating ensures the longest possible tool life, especially in hardened steels up to 63 HRC. All tools have left-hand cutting and are suitable for right-hand and left-hand threads. Always use with cooling lubricant emulsion. Fat content minimum 8%. In the case of steels >45 HRC: can only be used with compressed air! Through-coolant: yes Thread pitch: 2 mm Cutting edge Dia. DC: 11.7 mm Cutter length lc: 6.3 mm Overhang L1: 43.2 mm Shank length Ls: 37.3 mm Overall length L: 83 mm
