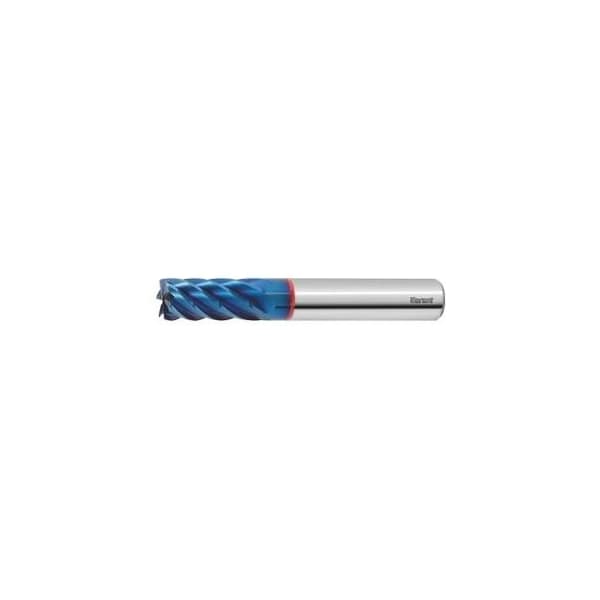

Diabolo Solid Carbide End Mill, for Hard Steels, TiAlN Coated, 2 mm
Mfr # 203211 2
Zoro # G014381550
product price: $46.65
/eaKey Features
Shank Tolerance
h6
Corner Chamfer Angle
90 Degrees
Cutting Width Ae for Milling Operation
0.05×D for side milling
Type of Product
End Mill
Feed Fz For Side Milling in Steel < 65 HRC
0.016 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203211 2
Zoro #
G014381550
UPC #
-
Country of Origin
Germany
Dimensions
Cutting Width Ae for Milling Operation
0.05×D for side milling
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Shank Dia.
6 mm
Min. Cutting Depth
0.01 mm
Milling Diameter
2 mm
Length of Cut
8 mm
Overall Length
57 mm
Description
GARANT Diabolo: Special geometry, coating and carbide, specially for hard machining. Dimensions similar to DIN 6527. Application: For profile milling as finishing. Plunge cutting only to shallow depths. Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 50 degrees Direction of infeed: horizontal and oblique Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Feed fz for side milling in steel < 65 HRC: 0.016 mm
