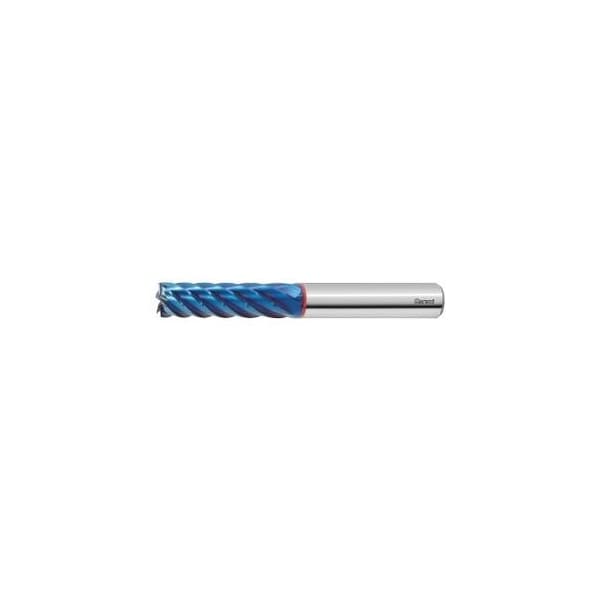

Diabolo Solid Carbide End Mill, for Hard Steels, TiAlN Coated, 20 mm

  • Mfr # 203372 20

  • Zoro # G514382309

product price:
$
1,032.99
/ea
Free Shipping & Returns

Key Features

Number of Flutes
10
End Mill Style
Square
Length of Cut
75 mm
End Mill Cutting Type
HPC
Cutting Direction
horizontal and oblique
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
203372 20
Zoro #
G514382309
UPC #
-
Country of Origin
Germany
Number of Flutes
10
End Mill Style
Square
Finish
TiAlN
End Mill Cutting Type
HPC
Cutting Direction
horizontal and oblique
Shank Type
DIN 6535 HA to h6
Series
Diabolo
End Mill Material
Carbide
Type
H
Coolant Through
No
Helix Angle
50 Degrees
Type of Product
End Mill
Shank Tolerance
h6
Corner Chamfer Angle
90 Degrees
Correction Factor Fz
1.5
Color Ring
red
Feed Fz For Side Milling in Steel < 65 HRC
0.03 mm

Description

GARANT Diabolo: Special geometry, coating and carbide, specially for hard machining. Application: For profile milling as finishing. Plunge cutting only to shallow depths. Tolerance nominal Dia. e8 No. of teeth Z: 10 Helix angle: 50 degrees Direction of infeed: horizontal and oblique Shank: DIN 6535 HA to h6 No. of teeth Z: 10 Flute length Lc: 75 mm Overall length L: 135 mm Shank Dia. Ds: 20 mm Feed fz for side milling in steel < 65 HRC: 0.03 mm
