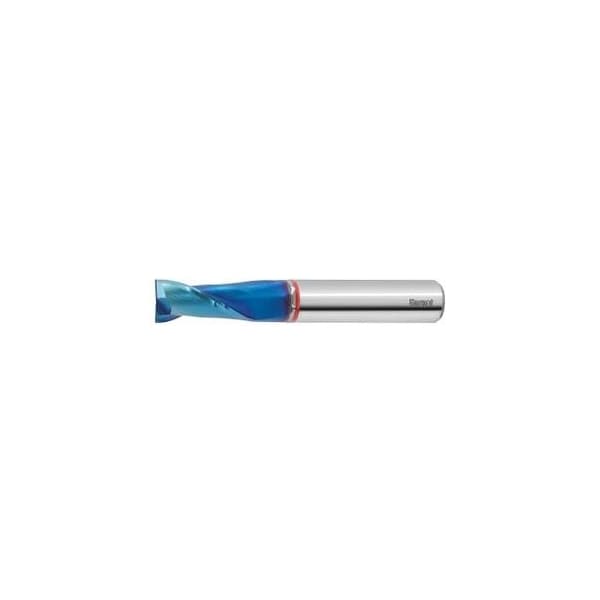

Diabolo Solid Carbide End Mill for Hard Steels, TiAlN Coated, 4 mm

  • Mfr # 201639 4
  • Zoro # G814380555
product price:
$
66.55
/ea

Key Features

Milling Diameter
4 mm
Overall Length
57 mm
Number of Flutes
2
End Mill Style
Chamfer
Finish
TiAlN
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
201639 4
Zoro #
G814380555
UPC #
-
Country of Origin
Germany
Number of Flutes
2
End Mill Style
Chamfer
Finish
TiAlN
End Mill Cutting Type
HPC
Shank Tolerance
h6
Feed Fz For Side Milling in Steel < 65 HRC
0.01 mm
Standard
DIN 6527
Type of Product
End Mill
Feed Fz For Slot Milling in Steel < 65 HRC
0.008 mm
Color Ring
red
Overall Reach
15 mm
Coolant Through
No
Shank Type
DIN 6535 HA to h6
Helix Angle
30 Degrees
Series
Diabolo
End Mill Material
Carbide
Type
H
Cutting Direction
horizontal, oblique and vertical
Corner Chamfer Angle
45 Degrees
Correction Factor Fz
1.25

Dimensions

Milling Diameter
4 mm
Overall Length
57 mm
Length of Cut
11 mm
Min. Cutting Depth
0.05 mm
Neck Dia.
3.8 mm
Shank Dia.
6 mm
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Corner Chamfer Width at 45°
0.05 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
2 mm

Description

GARANT Diabolo: Special geometry, coating and carbide specially for hard machining. New generation of high performance milling cutters in the HPC machining range. From size 2 with neck recess dimensions L1 andDia. D1. Tolerance nominal Dia. e8 No. of teeth Z: 2 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 2 Flute length Lc: 11 mm Overhang length L1 incl. recess: 15 mm Recess Dia. D1: 3.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
