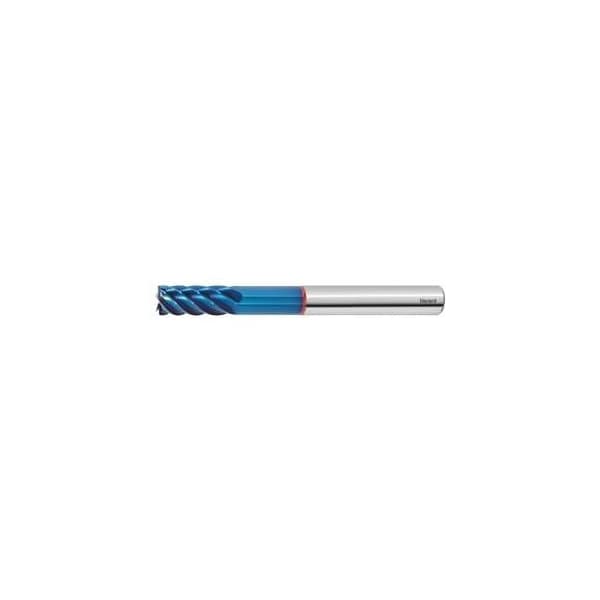

Diabolo Solid Carbide End Mill, for Hard Steels, TiAlN Coated, 8 mm

  • Mfr # 203382 8
  • Zoro # G014382250
product price:
$
149.99
/ea
Free Shipping & Returns

Key Features

Overall Length
100 mm
Milling Diameter
8 mm
Number of Flutes
6
End Mill Style
Square
Finish
TiAlN
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
203382 8
Zoro #
G014382250
UPC #
-
Country of Origin
Germany
Number of Flutes
6
End Mill Style
Square
Finish
TiAlN
End Mill Cutting Type
HPC
End Mill Material
Carbide
Overall Reach
50 mm
Series
Diabolo
Shank Type
DIN 6535 HA to h6
Helix Angle
50 Degrees
Type
H
Coolant Through
No
Cutting Direction
horizontal and oblique
Type of Product
End Mill
Feed Fz For Side Milling in Steel < 65 HRC
0.016 mm
Correction Factor Fz
1.25
Corner Chamfer Angle
90 Degrees
Color Ring
red
Shank Tolerance
h6

Description

GARANT Diabolo: Special geometry, coating and carbide, specially for hard machining. Application: For profile milling as finishing. Plunge cutting only to shallow depths. Tolerance nominal Dia. e8 No. of teeth Z: 6 Helix angle: 50 degrees Direction of infeed: horizontal and oblique Shank: DIN 6535 HA to h6 No. of teeth Z: 6 Flute length Lc: 19 mm Overhang length L1 incl. recess: 50 mm Recess Dia. D1: 7.7 mm Overall length L: 100 mm Shank Dia. Ds: 8 mm
