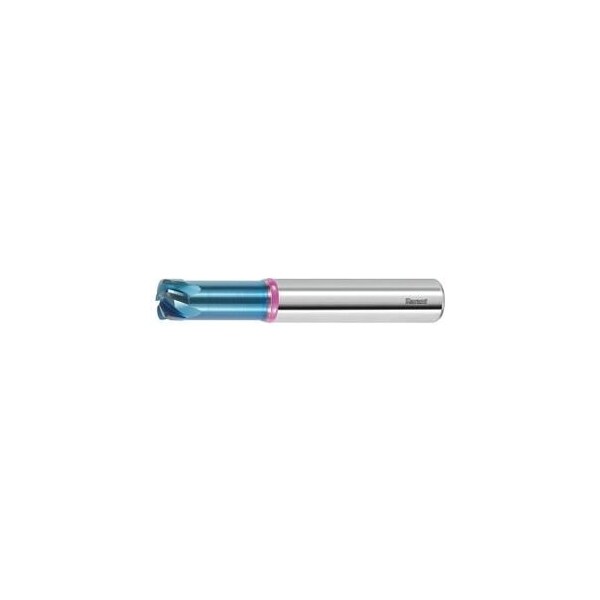

Diabolo Solid Carbide End Torus End Mill, for Titanium, TiAlN Coated, 2 mm
- Mfr # 206286 2
- Zoro # G414384335
product price:
$
94.69
/ea
Key Features
Milling Diameter
2 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 206286 2
- Zoro #
- G414384335
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 2 mm
Description
Tolerance: Corner radius R1 = ±0.01 mm. Special Center cutting edge geometry for traverse milling at very high feed rates. Application: For copy and traverse milling of titanium under HPC conditions. Using special milling strategies very high rates of metal removal can be achieved. Note: Regrinding not recommended. No. of teeth Z: 2 No. of teeth Z: 2 Dimension ap max transverse: 0.15 mm Programming radius: 0.3 mm Flute length Lc: 1.5 mm Overhang length L1 incl. recess: 13 mm Recess Dia. D1: 1.7 mm
