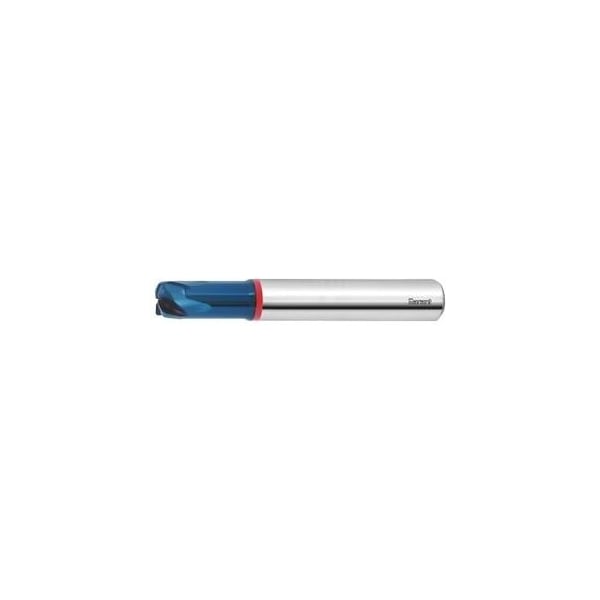

Diabolo Solid Carbide End Torus End Mill, TiAlN Coated, 2 mm
- Mfr # 206273 2
- Zoro # G914384385
product price:
$
99.75
/ea
Key Features
Overall Length
54 mm
Milling Diameter
2 mm
Finish
TiAlN
End Mill Cutting Type
HPC
Helix Angle
12 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 206273 2
- Zoro #
- G914384385
- UPC #
- -
- Country of Origin
- Germany
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Helix Angle
- 12 Degrees
- Shank Type
- DIN 6535 HA to h5
- Cutting Direction
- horizontal, oblique and vertical
- Overall Reach
- 13 mm
- Series
- Diabolo
- Type
- H
- Coolant Through
- No
- End Mill Style
- Corner Radius
- Number of Flutes
- 2
- End Mill Material
- Carbide
- Setting Angle
- 10.5 Degrees
- Color Ring
- red
- Shank Tolerance
- h6
- Feed F Z in Steel < 60 HRC
- 0.024 mm
- Approach Angle
- 90 Degrees
- Type of Product
- End torus mill
- Correction Factor Fz
- 1.25
Description
GARANT Diabolo: Special geometry, coating and carbide for hard machining. Tolerance: Corner radius R1 = ±0.01 mm. Special Center cutting edge geometry for traverse milling at very high feed rates. Application: For copy and traverse milling in hard machining under HPC / HSC conditions. Special milling strategies allow very high metal removal rates. Note: Successor product to No. 206276. Tools can be reground. No. of teeth Z: 2 No. of teeth Z: 2 Dimension ap max transverse: 0.06 mm Programming radius: 0.3 mm Flute length Lc: 1.5 mm Overhang length L1 incl. recess: 13 mm Recess Dia. D1: 1.7 mm
