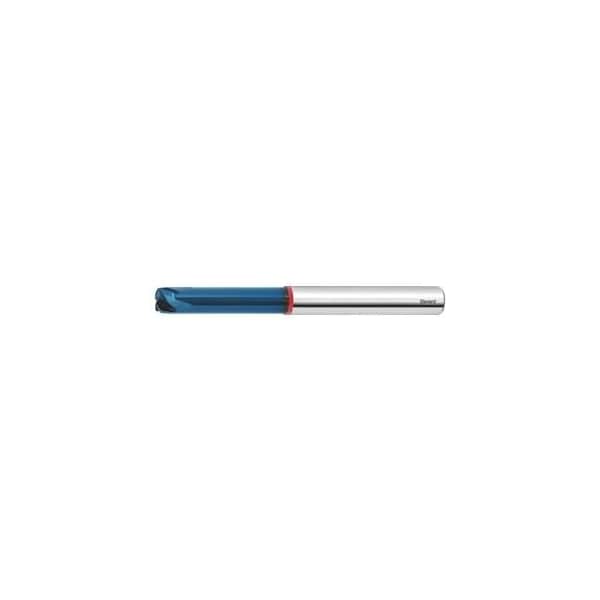

Diabolo Solid Carbide End Torus End Mill, TiAlN Coated, 2 mm
Mfr # 206275 2
Zoro # G714384387
product price: $94.15
/eaKey Features
Overall Length
75 mm
Milling Diameter
2 mm
Number of Flutes
2
End Mill Style
Corner Radius
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 206275 2
- Zoro #
- G714384387
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 75 mm
- Milling Diameter
- 2 mm
- Length of Cut
- 1.5 mm
- Shank Dia.
- 6 mm
- Neck Dia.
- 1.7 mm
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 0.06 mm
- Dimension Ap Max Transverse
- 0.06 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 0.06 mm
- Programming Radius
- 0.3 mm
- Tolerance Nominal Diameter
- h9
- Cutting Width Ae for Milling Operation
- Full slot cutting depth 1×D
Description
GARANT Diabolo: Special geometry, coating and carbide for hard machining. Tolerance: Corner radius R1 = ±0.01 mm. Special Center cutting edge geometry for traverse milling at very high feed rates. Application: For copy and traverse milling in hard machining under HPC / HSC conditions. Special milling strategies allow very high metal removal rates. Note: Successor product to No. 206278. Tools can be reground. No. of teeth Z: 2 No. of teeth Z: 2 Dimension ap max transverse: 0.06 mm Programming radius: 0.3 mm Flute length Lc: 1.5 mm Overhang length L1 incl. recess: 18 mm Recess Dia. D1: 1.7 mm
