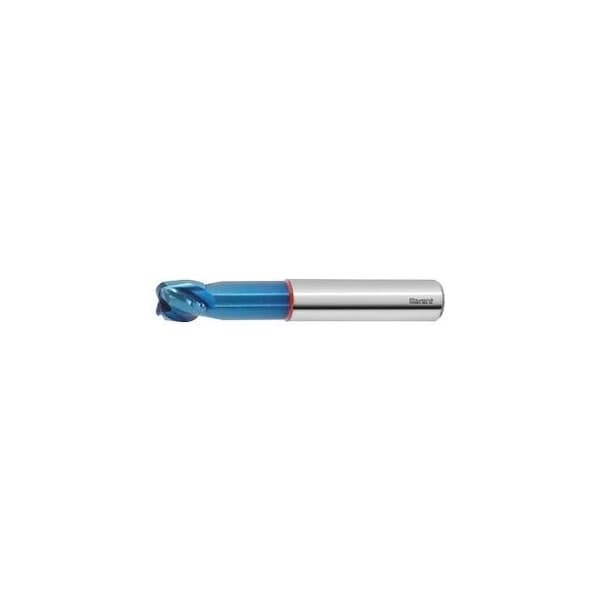

Diabolo Solid Carbide Torus End Mill, for Hard Steels, TiAlN Coated, 10/0.5 mm
Mfr # 206322 10/0,5
Zoro # G314384848
product price:
$
181.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
10 mm
Overall Length
72 mm
Number of Flutes
4
End Mill Style
Corner Radius
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 206322 10/0,5
- Zoro #
- G314384848
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 10 mm
- Overall Length
- 72 mm
- Length of Cut
- 11 mm
- Shank Dia.
- 10 mm
- Corner Radius
- 0.5 mm
- Neck Dia.
- 9.2 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 11 mm
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 0.5 mm
- Tolerance Nominal Diameter
- e8
Description
GARANT Diabolo: Special geometry, coating and carbide, specially for hard machining. Double relief ground side clearance angle. Tolerance: Corner radius R1 = ±0.005 mm. No. of teeth Z: 4 Helix angle: 30 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 11 mm Corner radius R1: 0.5 mm Overhang length L1 incl. recess: 32 mm Recess Dia. D1: 9.2 mm Overall length L: 72 mm
