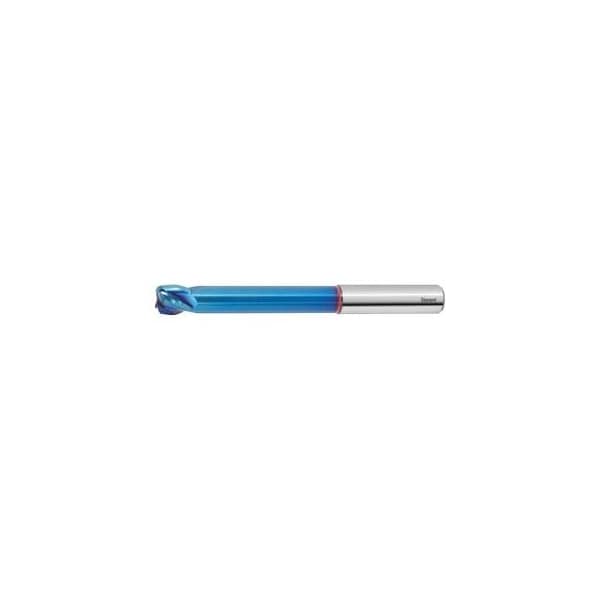

Diabolo Solid Carbide Torus End Mill, for Hard Steels, TiAlN Coated, 2/0.2 mm
Mfr # 206342 2/0,2
Zoro # G014381260
product price: $86.99
/ea
Free Shipping & Returns
Key Features
Shank Type
DIN 6535 HA to h6
Coolant Through
No
End Mill Cutting Type
HPC
Overall Length
75 mm
Shank Dia.
3 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206342 2/0,2
Zoro #
G014381260
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
75 mm
Shank Dia.
3 mm
Length of Cut
2.5 mm
Milling Diameter
2 mm
Corner Radius
0.2 mm
Neck Dia.
1.8 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.1 mm
Maximum Cutting Depth Ap Max When Side Milling
2.5 mm
Min. Cutting Depth
0.01 mm
Description
GARANT Diabolo: Special geometry, coating and carbide, specially for hard machining. Double relief ground side clearance angle. Tolerance: Corner radius R1 = ±0.005 mm. No. of teeth Z: 4 Helix angle: 30 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 2.5 mm Corner radius R1: 0.2 mm Overhang length L1 incl. recess: 25 mm Recess Dia. D1: 1.8 mm Overall length L: 75 mm
