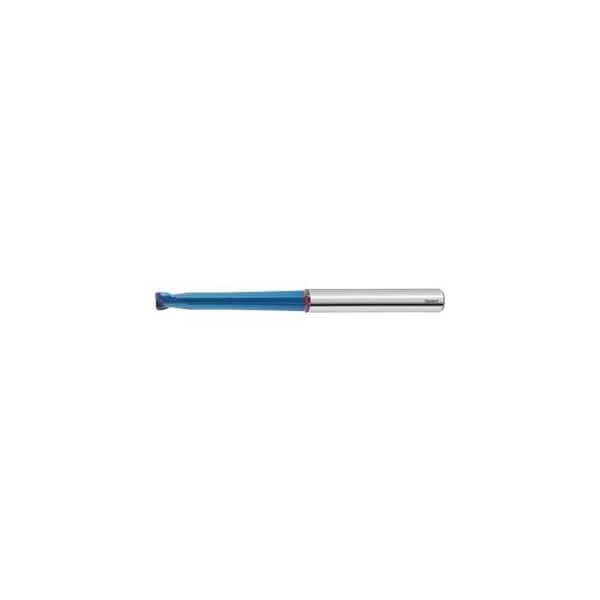

Diabolo Solid Carbide Torus End Mill, for Hard Steels, TiAlN Coated, 3/0.3 mm
Mfr # 206162 3/0,3
Zoro # G214382012
product price: $68.39
/eaKey Features
Feed Fz For Side Milling in Steel < 65 HRC
0.019 mm
Feed Fz For Copy Milling in Steel < 65 HRC
0.019 mm
Correction Factor Fz
1.25
Min. Cutting Depth
0.01 mm
Shank Tolerance
h6
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206162 3/0,3
Zoro #
G214382012
UPC #
-
Country of Origin
Germany
Dimensions
Min. Cutting Depth
0.01 mm
Maximum Shank Recess Dia.
4 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
3.6 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.15 mm
Shank Dia.
4 mm
Corner Radius
0.3 mm
Milling Diameter
3 mm
Neck Dia.
2.95 mm
Length of Cut
3.6 mm
Overall Length
75 mm
Description
GARANT Diabolo: Special geometry, coating and carbide for hard machining. For copy milling with angle a: 1 Deg 30'. Double relief ground side clearance angle. Tolerances: Corner radius: R1= ±0.005 mm. Angle a= ±20'. Note: Standard application values: fz for ap = 0.1xD. No. of teeth Z: 2 Helix angle: 30 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 2 Flute length Lc: 3.6 mm Corner radius R1: 0.3 mm Overhang length L1 incl. recess: 6 mm maximum shank recess dia. D6: 4 mm Recess Dia. D1: 2.95 mm
