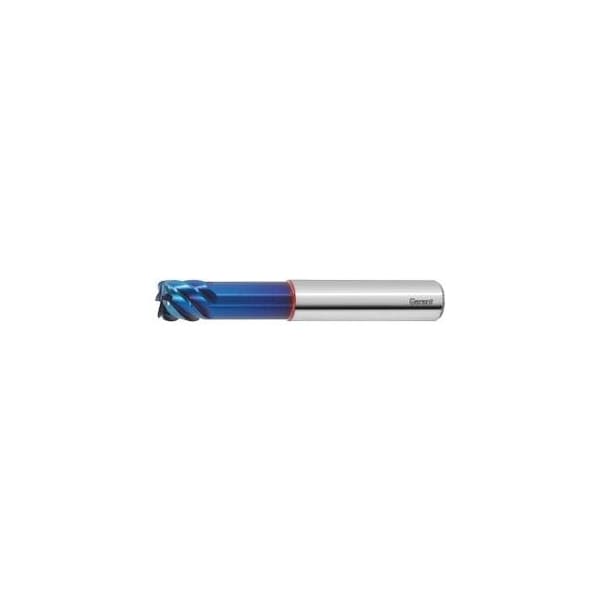

Diabolo Solid Carbide Torus End Mill, for Hard Steels, TiAlN Coated, 8/3.0 mm
Mfr # 206372 8/3,0
Zoro # G314384336
product price: $112.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
8 mm
Helix Angle
50 Degrees
Overall Length
63 mm
Corner Radius
3 mm
Type
H
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206372 8/3,0
Zoro #
G314384336
UPC #
-
Country of Origin
Germany
Dimensions
Shank Dia.
8 mm
Overall Length
63 mm
Corner Radius
3 mm
Milling Diameter
8 mm
Length of Cut
9 mm
Maximum Cutting Depth Ap Max When Side Milling
9 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.4 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
e8
Neck Dia.
7.4 mm
Description
GARANT Diabolo: Special geometry, coating and carbide for hard machining. Tolerance: Corner radius R1 = ±0.005 mm. Dimensions according to factory standard and 50 Deg helix. Double relief ground side clearance angle. Without dynamic twist pitch. No. of teeth Z: 6 Helix angle: 50 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 6 Flute length Lc: 9 mm Corner radius R1: 3 mm Overhang length L1 incl. recess: 27 mm Recess Dia. D1: 7.4 mm Overall length L: 63 mm
