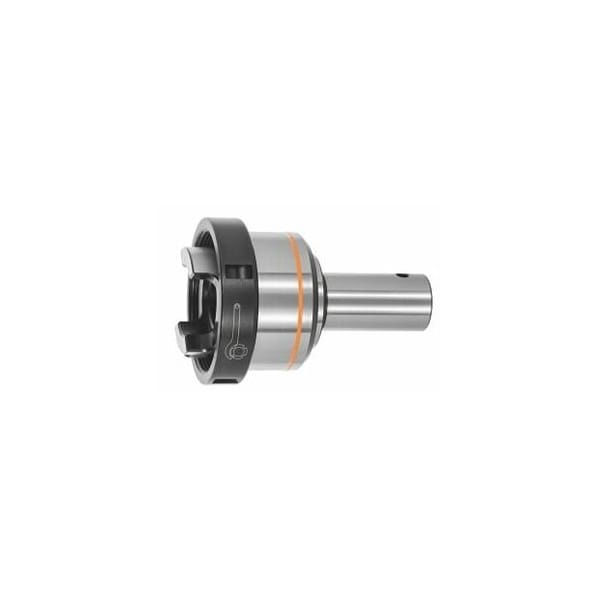

Die Toolholder with Length Compensation, Shank Diameter: 25mm

Plain shank Robust toolholder, all functional faces hardened and ground. Length compensation by compression and tension for cutting external threads exactly true to gage size. To take standard DIN dies round version. Advantage: Cost reduction thanks to the modular system. All interchangeable inserts fit the base holder. Precise results, even on long threads. High quality threads. Application: Cutting external threads by means of a die. For use primarily on lathes, but also suitable for milling machines. Optional extras: Die adapter no. 319795. Dia D2: 71 mm Length compensation by compression: 4 mm Length compensation by tension: 12 mm Length L: 47.2 mm
