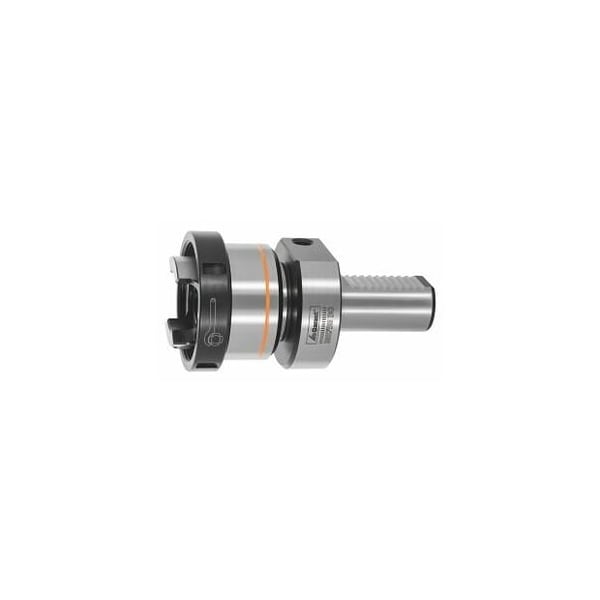

Die Toolholder with Length Compensation, VDI, Shank Diameter: 30mm
Mfr # 319793 30
Zoro # G414825340
product price:Â
$
820.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
70 mm
Dia.
30 mm
Colour Code for VDI Shanks
VDI 30
Overall Length
71 mm
VDI Size
30
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 319793 30
- Zoro #
- G414825340
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 70 mm
- Dia.
- 30 mm
- Overall Length
- 71 mm
- VDI Size
- 30
- Length Compensation By Tension
- 12 mm
- Length Compensation By Compression
- 4 mm
Details
- Item
- Die holder
- Colour Code for VDI Shanks
- VDI 30
Description
VDI shank. Robust toolholder, all functional faces hardened and ground. Length compensation by compression and tension for cutting external threads exactly true to gage size. To take standard DIN dies round version. Advantage: Cost reduction thanks to the modular system. All interchangeable inserts fit the base holder. Central coolant feed. Precise results, even on long threads. High quality threads. Application: Cutting external threads by means of a die. For use primarily on lathes, but also suitable for milling machines. Optional extras: Die adapter no. 319795. Dia D2: 70 mm Length compensation by compression: 4 mm Length compensation by tension: 12 mm Length L: 71 mm color code for VDI shanks: VDI 30
