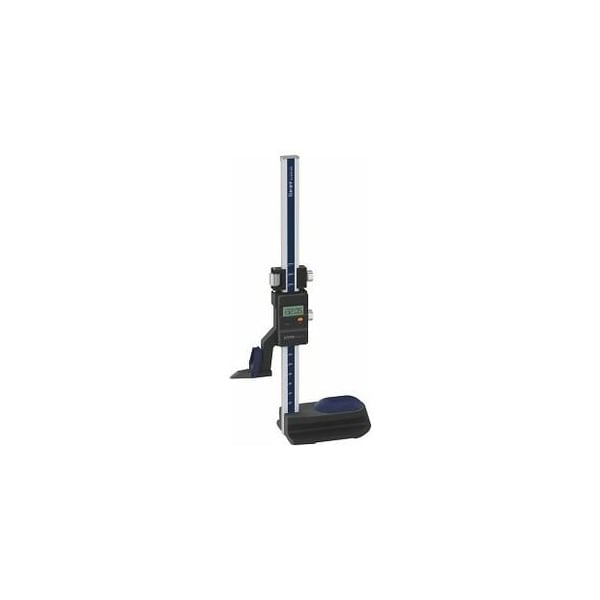

Digital Height Gage and Marking-out System with Data Output, 600 mm
Mfr # 444000 600
Zoro # G014555876
product price:Â
$
1,169.99
/ea
Free Shipping & Returns
Key Features
Article no of the battery / rechargeable battery fitted
081560 CR2032
Measurement Technology
digital
Base Width
110 mm
Marking Height
600 mm
Power Supply
Battery-powered
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 444000 600
- Zoro #
- G014555876
- UPC #
- -
- Country of Origin
- Germany
- Item
- Height gauge and marking device
- Article no of the battery / rechargeable battery fitted
- 081560 CR2032
- Measurement Technology
- digital
- Power Supply
- Battery-powered
- Error Limit
- 0.05 mm
- Column Cross Section
- 30×12 mm
- Standards
- Manufacturer's standard
- Batteires Included
- 1
- Scale Divisions
- 0.0005 in, 0.01 mm
- Reversible Reading
- mm / inch
Description
Strong base with ground standing surface and dirt trap grooves. Ergonomic and comfortable plastic cap with Haptoprene surface. Flat carbide-tipped scriber for easy marking out even in narrow grooves, exchangeable. Fold-away or removable protection cap for injury-free working. Marking out from 0, drawing dimensions can therefore be transferred directly without the risk of calculation errors. Very easy to read, high-contrast 11mm-high LCD display. Incl. data output. With fine adjustment and locking screw. Standard: Strong base with ground standing surface and dirt trap grooves. Ergonomic and comfortable plastic cap with Haptoprene surface. Flat carbide-tipped scriber for easy marking out even in narrow grooves, exchangeable, marking out from 0. Drawing dimensions can therefore be transferred directly without the risk of calculation errors. Fold-away or removable protection cap for injury-free working. With fine setting adjustment and high-speed screw. Very easy to read, high-contrast 11 mm-high LCD display. Incl. data output. Function: Zeroing in any position Preset Selectable mm / inches Data output RS232 Proximity Hold function Supplied with: Scriber No. 444010 size 75.
