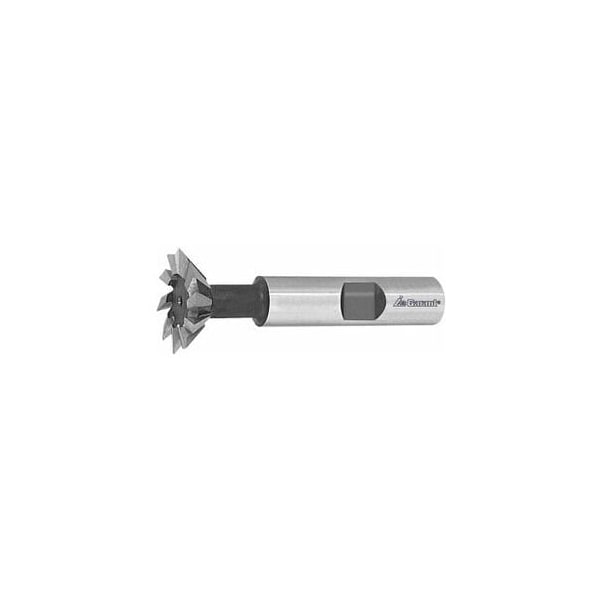

Dovetail Milling Cutter, Form C, 45 Deg, Uncoated, 25 mm

  • Mfr # 194040 25
  • Zoro # G314501092
product price:
$
82.69
/ea

Key Features

Neck Dia.
8 mm
Cutter Dia.
25 mm
Coolant Through
no
Finish
uncoated
Correction Factor Fz
1.25
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
194040 25
Zoro #
G314501092
UPC #
-
Country of Origin
South Africa

Dimensions

Neck Dia.
8 mm
Cutter Dia.
25 mm
Maximum Cutting Depth Ap Max When Side Milling
6.3 mm
Tolerance Nominal Diameter
js16
Overall Length
67 mm
Shank Diameter
12 mm
Length of Cut
6.3 mm
Min. Cutting Depth
0.01 mm

Details

Coolant Through
no
Finish
uncoated
Correction Factor Fz
1.25
Corner Chamfer Angle
45 Degrees
Flutes
10
Color Ring
without
Direction of infeed
horizontal
Type of Product
Dovetail milling cutter
End Mill Style
Chamfer
Feed Fz in Steel < 750 N/mm2
0.08 mm
Shape
C
End Mill Material
Cobalt High Speed Steel
Shank Tolerance
h6
Standard
DIN 1833
Shank
DIN 1835 B to h6
Feed Fz in Steel < 750 N/mm2
0.08 mm

Description

Special surface treatment. Form C cuts frontal and on the circumference. Note: For milling small dovetails in tool making and machine building.
