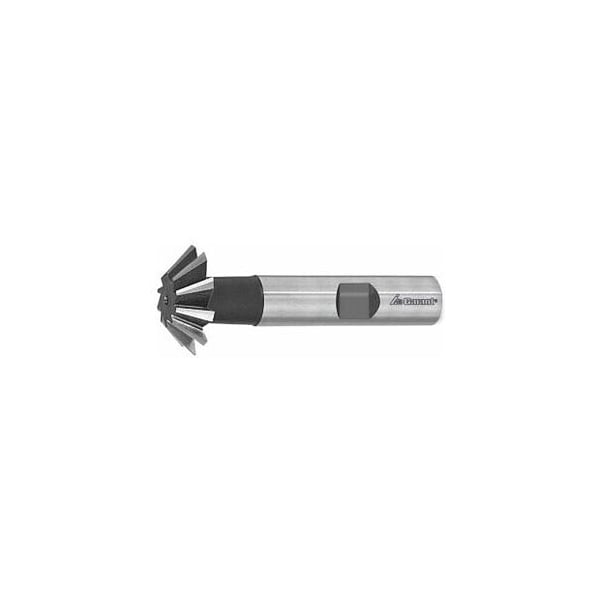

Dovetail Milling Cutter, Form D, 45 Deg, 28 mm
Mfr # 194020 28
Zoro # G214501093
product price: $112.99
/ea
Free Shipping & Returns
Key Features
Shape
D
Type of Product
Dovetail milling cutter
Color Ring
without
Feed Fz in Steel < 750 N/mm2
0.08 mm
Shank Tolerance
h6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
194020 28
Zoro #
G214501093
UPC #
-
Country of Origin
South Africa
Dimensions
Tolerance Nominal Diameter
js16
Length of Cut
7.5 mm
Shank Diameter
16 mm
Maximum Cutting Depth Ap Max When Side Milling
7.5 mm
Min. Cutting Depth
0.01 mm
Neck Dia.
14 mm
Cutter Dia.
28 mm
Overall Length
80 mm
Details
Shape
D
Type of Product
Dovetail milling cutter
Color Ring
without
Feed Fz in Steel < 750 N/mm2
0.08 mm
Shank Tolerance
h6
Standard
DIN 1833
Direction of infeed
horizontal
Correction Factor Fz
1.25
Shank
DIN 1835 B to h6
End Mill Style
Chamfer
Flutes
10
Finish
uncoated
Corner Chamfer Angle
45 Degrees
End Mill Material
Cobalt High Speed Steel
Coolant Through
no
Feed Fz in Steel < 750 N/mm2
0.08 mm
Description
Special surface treatment. Form D cuts only on the circumference, straight teeth. Note: For milling small dovetails in tool making and machine building.
