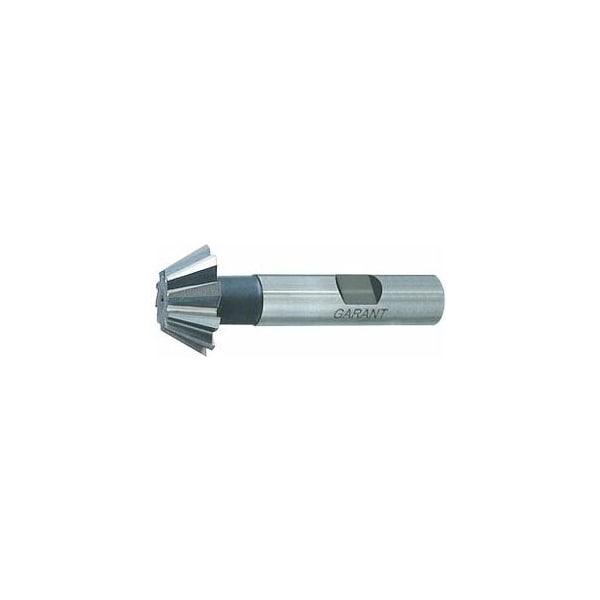

Dovetail Milling Cutter, Form D, 60 Deg, 32 mm
Mfr # 194120 32
Zoro # G614501136
product price: $139.99
/ea
Free Shipping & Returns
Key Features
Flutes
12
Overall Length
71 mm
Length of Cut
12.5 mm
Cutter Dia.
32 mm
Neck Dia.
15 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
194120 32
Zoro #
G614501136
UPC #
-
Country of Origin
South Africa
Dimensions
Overall Length
71 mm
Length of Cut
12.5 mm
Cutter Dia.
32 mm
Neck Dia.
15 mm
Shank Diameter
16 mm
Tolerance Nominal Diameter
js16
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
12.5 mm
Details
Flutes
12
Shape
D
Feed Fz in Steel < 750 N/mm2
0.09 mm
Type of Product
Dovetail milling cutter
End Mill Material
Cobalt High Speed Steel
Coolant Through
no
Shank Tolerance
h6
Color Ring
without
End Mill Style
Drill Point
Corner Chamfer Angle
60 Degrees
Standard
DIN 1833
Shank
DIN 1835 B to h6
Direction of infeed
horizontal
Correction Factor Fz
1.25
Finish
uncoated
Feed Fz in Steel < 750 N/mm2
0.09 mm
Description
Special surface treatment. Form D cuts only on the circumference, straight teeth. Note: For milling small dovetails in tool making and machine building.
