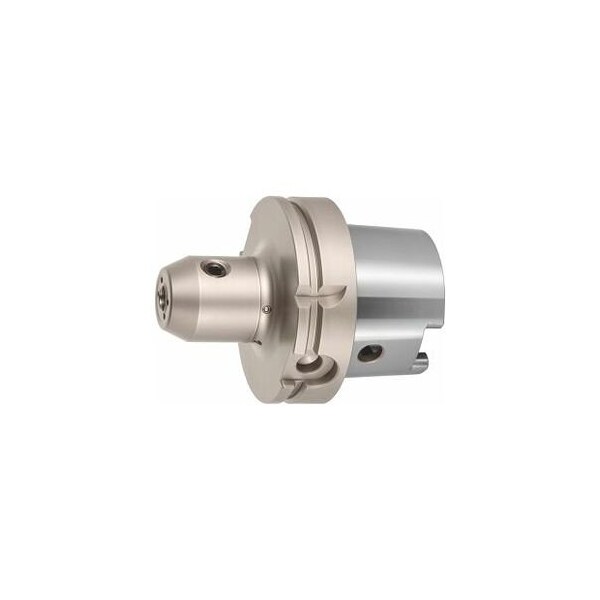

End Mill Holder, Nickel-plated, with cooling channel bore, HSK-A 100 short, Clamping Dia D1: 6mm
- Mfr # 304392 6
- Zoro # G314773970
product price:Â
$
314.99
/ea
Free Shipping & Returns
Key Features
Outside Dia.
25 mm
Taper Size
HSK100A
Clamping Dia.
6 mm
Shape
A
Projection
80 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 304392 6
- Zoro #
- G314773970
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Outside Dia.
- 25 mm
- Taper Size
- HSK100A
- Clamping Dia.
- 6 mm
Details
- Item
- Side lock arbor
- Shape
- A
- Projection
- 80 mm
- Spare Clamping Screw No. 30 9900
- 6
- Concentricity
- ≤ 3 µm
- Balance Quality
- G 2.5 at 25,000 rpm
Description
With RFID/Balluffchip bore. HSK mating faces machined. GARANT: All shanks hard turned for smooth running!. Special nickel plating. With coolant supply holes that can be plugged. Application: For clamping tools with Weldon shank to DIN 1835 Form B and DIN 6535 Form HB. Note: HSK 40 and 50, Form A and E available ex works by the manufacturer. Overhang dimension A: 80 mm External Dia D: 25 mm Spare clamping screw No. 30 9900: 6
