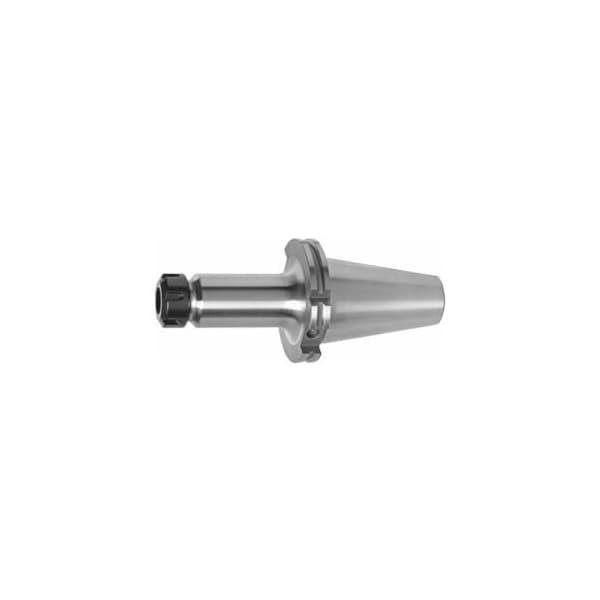

ER Collet Chuck, Form ADB, SK 50, Projection: 130, for ER Collet: 32
Mfr # 300575 32
Zoro # G214773612
product price: $236.99
/ea
Free Shipping & Returns
Key Features
Taper Size
SK50
Spare Holex Nut No. 309580
32
Machining Strategy
HSC
Balluffchip Bore
Yes
Outside Dia.
50 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
300575 32
Zoro #
G214773612
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Taper Size
SK50
Outside Dia.
50 mm
Clamping Dia.
2-20 mm
Details
Spare Holex Nut No. 309580
32
Machining Strategy
HSC
Balluffchip Bore
Yes
Shank Shape
ADB
Collet Series
ER32
Balance Quality
G 2.5 at 25,000 rpm
Projection
130 mm
Standards
ISO 7388-1
Clamping Range
2 mm
Item
Collet chuck
Spare Garant High-Speed Clamping Nut No. 309610
32
Concentricity
≤ 3 µm
Description
Taper ground internally and externally. With Balluff/RFID chip bore. GARANT , Balancing quality G2.5 / 25-000 rpm All shanks hard turned for smooth running!. GARANT precision clamping nut, fine balanced G 2.5 / 25-000 rpm and coated, giving high clamping force and low wear. Through bored. Application: For clamping tools with plain shank in collets to DIN 6499 Form A and B. Supplied with: Clamping nut. Optional extras: Pull studs PS No. 308600 308806, PS pull stud wrenches No.308820 308835, ER chuck key No. 309680 613300, ER collets No. 308901 309449, ER clamping nuts No. 309615 for sealing rings, sealing rings No. 309625 309645 for No. 309615. Machining strategy: HSC Clamping range: 2 20 mm Overhang dimension A: 130 mm External Dia D: 50 mm Spare GARANT high-speed clamping nut No. 309610: 32 Spare HOLEX nut No. 309580: 32
