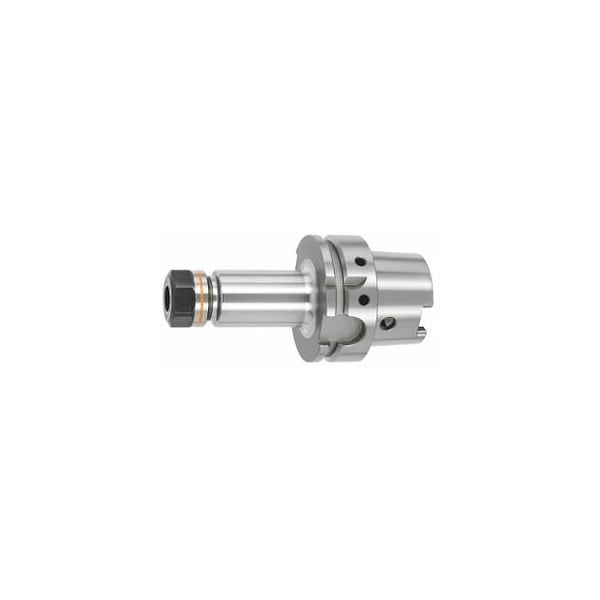

ER Collet Chuck, HSK-A 63 Long, for ER Collet: 40
Mfr # 305390 40
Zoro # G014775465
product price: $231.99
/ea
Free Shipping & Returns
Key Features
Taper Size
HSK63A
Shank Shape
A
Collet Series
ER40
Projection
120 mm
Outside Dia.
63 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
305390 40
Zoro #
G014775465
UPC #
-
Country of Origin
Germany
Dimensions
Taper Size
HSK63A
Outside Dia.
63 mm
Details
Item
Collet Chuck
Shank Shape
A
Collet Series
ER40
Projection
120 mm
Concentricity
≤ 3 µm
Machining Strategy
HSC
Clamping Range
3 mm
Balance Quality
G 2.5 at 25,000 rpm
Balluffchip Bore
Yes
Description
With Balluff/RFID chip bore. With Ballufchip bore. Application: For clamping tools with plain shanks in ER collets to DIN 6499 Form A and B. Supplied with: Coated high-speed clamping nut. Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, ER collets No. 308881 309434, ER chuck key No. 309680 or 613300. Clamping range: 3 26 mm Overhang dimension A: 120 mm External Dia D: 63 mm
