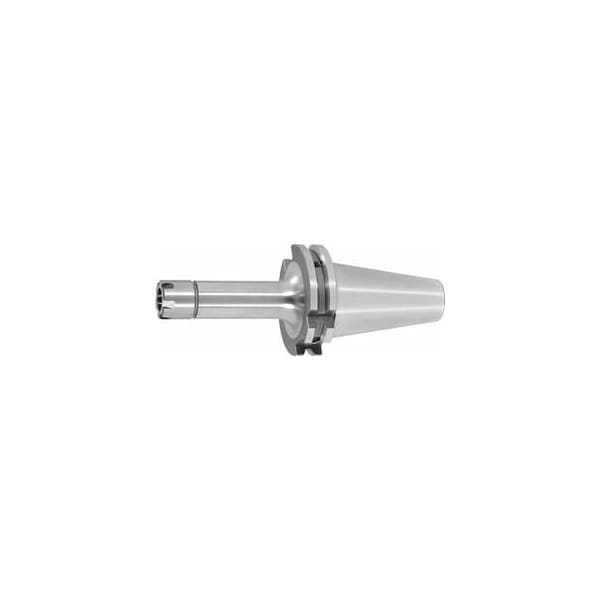

ER Collet Chuck, Mini/Slim, Form ADB, SK 40, Projection: 70, for ER Collet: 16
Mfr # 300649 16
Zoro # G314773871
product price: $221.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
ADB
Overall Length
45 mm
Taper Size
SK40
Collet Series
ER16
Projection
70 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
300649 16
Zoro #
G314773871
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
45 mm
Taper Size
SK40
Clamping Dia.
0.5-10 mm
Outside Dia.
22 mm
Details
Item
Collet Chuck
Shank Shape
ADB
Collet Series
ER16
Projection
70 mm
Standards
ISO 7388-1
Machining Strategy
HSC
Suitable Chuck Key No. 309740
16
Concentricity
≤ 3 µm
Balance Quality
G 2.5 at 25,000 rpm
Clamping Range
0.5 mm
Description
Clamping nut finely balanced for HSC. ER11 through bored. Shanks hard turned smooth cutting action. With Balluffchip bore as standard. Application: For clamping tools with plain shank to DIN 6499. Supplied with: High speed ER mini nut No. 309650. Optional extras: ER collets No. 308881 309434, ER lock wrench No. 309740. Pull studs PS No. 308600 308806. PS chuck key No. 308820, 308830. Machining strategy: HSC Clamping range: 0.5 10 mm Overhang dimension A: 70 mm External Dia D: 22 mm Suitable chuck key No. 309740: 16
