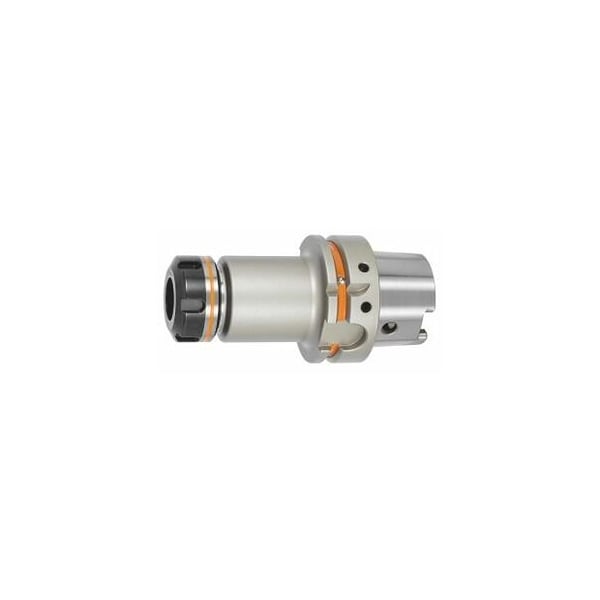

ER Collet Chuck, Nickel-Plated, HSK-A 63 Long, for ER Collet: 32
Mfr # 305394 32
Zoro # G714773143
product price: $249.99
/ea
Free Shipping & Returns
Key Features
Taper Size
HSK63A
Shank Shape
A
Collet Series
ER32
Projection
100 mm
Outside Dia.
50 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
305394 32
Zoro #
G714773143
UPC #
-
Country of Origin
Germany
Dimensions
Taper Size
HSK63A
Outside Dia.
50 mm
Details
Item
Collet Chuck
Shank Shape
A
Collet Series
ER32
Projection
100 mm
Clamping Range
2 mm
Concentricity
≤ 3 µm
Balance Quality
G 2.5 at 25,000 rpm
Balluffchip Bore
Yes
Machining Strategy
HSC
Description
With Balluff/RFID chip bore. All shanks hard turned for smooth running!. Through bored without adjustment screw. HSK mating faces machined. Nickel-plated to prevent corrosion. Application: For clamping tools with plain shanks in ER collets to DIN 6499 Form A and B. Supplied with: Coated High-Speed clamping nut. Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, ER collets No. 308881 309434, ER chuck key No. 309680 or 613300. Clamping range: 2 20 mm Overhang dimension A: 100 mm External Dia D: 50 mm
