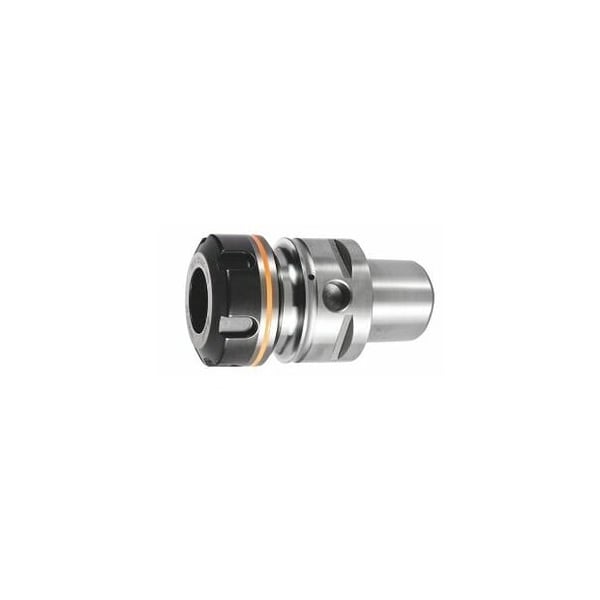

ER Collet Chuck, PSC 40 Short, for ER Collet: 32
Mfr # 308513 32
Zoro # G414773795
product price:Â
$
287.99
/ea
Free Shipping & Returns
Key Features
Taper Size
PSC40
Collet Series
ER32
Projection
55 mm
Machining Strategy
HSC
Clamping Range
2 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 308513 32
- Zoro #
- G414773795
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- PSC40
- Outside Dia.
- 50 mm
Details
- Item
- Collet Chuck
- Collet Series
- ER32
- Projection
- 55 mm
- Machining Strategy
- HSC
- Clamping Range
- 2 mm
- Standards
- ISO 26623-1
- Concentricity
- ≤ 3 µm
- Spare Garant High-Speed Clamping Nut No. 309610
- 32
- Coolant Through
- Yes
- Balance Quality
- G 2.5 at 25,000 rpm
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. Application: For clamping tools with plain shank in ER collets to DIN 6499 Form A and B. Supplied with: Coated high-speed clamping nut. Optional extras: ER collets No. 308881 309434, ER chuck key No. 309680 or 613300, coolant pipe No. 309885 and socket No. 309893. Coolant tube and assembling key for coolant tubes No. 309885 and 309893. Through-coolant: yes Clamping range: 2 20 mm Overhang dimension A: 55 mm External Dia D: 50 mm Spare GARANT high-speed clamping nut No. 309610: 32
