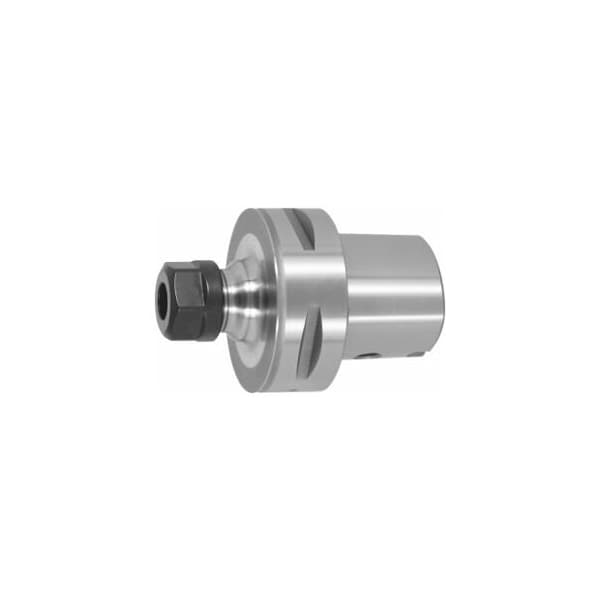

ER Collet Chuck, PSC 50 Short, for ER Collet: 25
Mfr # 308514 25
Zoro # G314773840
product price: $287.99
/ea
Free Shipping & Returns
Key Features
Projection
55 mm
Machining Strategy
HSC
Outside Dia.
42 mm
Clamping Range
1 mm
Coolant Through
Yes
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
308514 25
Zoro #
G314773840
UPC #
-
Country of Origin
Germany
Dimensions
Outside Dia.
42 mm
Taper Size
PSC50
Details
Projection
55 mm
Machining Strategy
HSC
Clamping Range
1 mm
Coolant Through
Yes
Concentricity
≤ 3 µm
Collet Series
ER25
Item
Collet chuck
Spare Garant High-Speed Clamping Nut No. 309610
25
Balance Quality
G 2.5 at 25,000 rpm
Standards
ISO 26623-1
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. Application: For clamping tools with plain shank in ER collets to DIN 6499 Form A and B. Supplied with: Coated high-speed clamping nut. Optional extras: ER collets No. 308881 309434, ER chuck key No. 309680 or 613300, coolant pipe No. 309885 and socket No. 309893. Coolant tube and assembling key for coolant tubes No. 309885 and 309893. Through-coolant: yes Clamping range: 1 16 mm Overhang dimension A: 55 mm External Dia D: 42 mm Spare GARANT high-speed clamping nut No. 309610: 25
