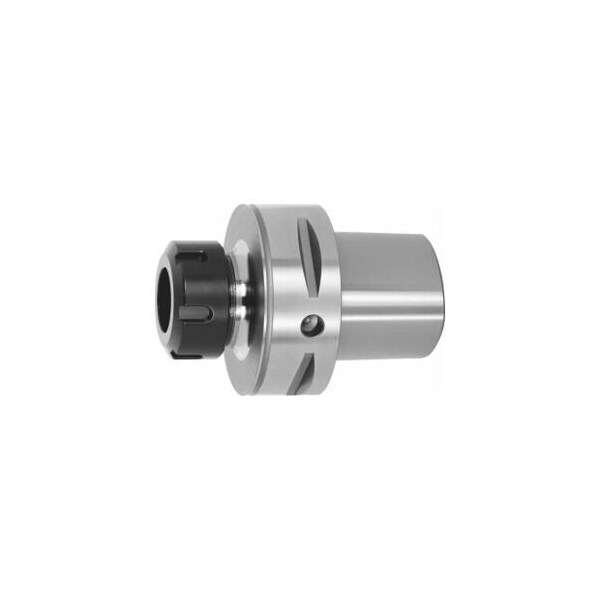

ER Collet Chuck, PSC 80 Short, for ER Collet: 32
Mfr # 308539 32
Zoro # G014774093
product price: $621.99
/ea
Free Shipping & Returns
Key Features
Taper Size
PSC80
Collet Series
ER32
Projection
70 mm
Machining Strategy
HSC
Balance Quality
G 2.5 at 25,000 rpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
308539 32
Zoro #
G014774093
UPC #
-
Country of Origin
Germany
Dimensions
Taper Size
PSC80
Outside Dia.
50 mm
Clamping Dia.
2-20 mm
Details
Item
Collet chuck
Collet Series
ER32
Projection
70 mm
Machining Strategy
HSC
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 3 µm
Spare Garant High-Speed Clamping Nut No. 309610
32
Coolant Through
Yes
Standards
ISO 26623-1
Clamping Range
2 mm
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. Application: For clamping tools with plain shanks in ER collets to DIN 6499, forms A and B. Supplied with: Coated High-Speed clamping nut. Optional extras: ER collets No. 308881 309434, ER chuck key No. 309680 or 613300, coolant pipe No. 309885 and socket No. 309893. Coolant tube and assembling key for coolant tubes No. 309885 and 309893. Through-coolant: yes Clamping range: 2 20 mm Overhang dimension A: 70 mm External Dia D: 50 mm Spare GARANT high-speed clamping nut No. 309610: 32
