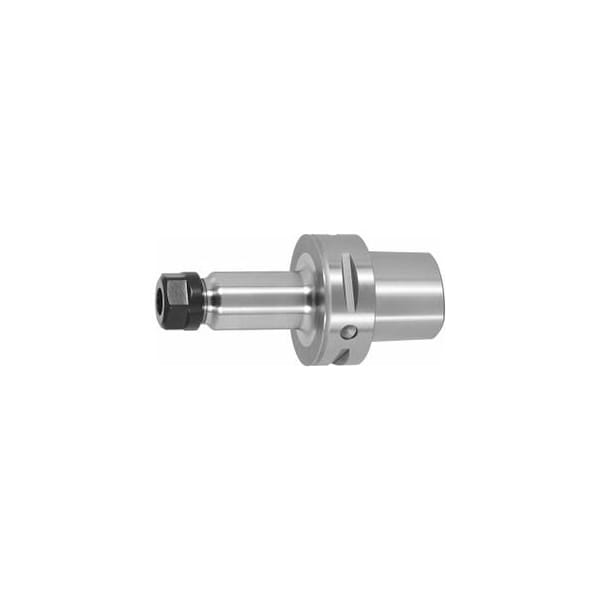

ER Collet Chuck, PSC63, Projection: 100, for ER Collet: 32
Mfr # 308522 32
Zoro # G914774223
product price: $357.99
/ea
Free Shipping & Returns
Key Features
Spare Garant High-Speed Clamping Nut No. 309610
32
Clamping Dia.
2-20 mm
Collet Series
ER32
Coolant Through
Yes
Machining Strategy
HSC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
308522 32
Zoro #
G914774223
UPC #
-
Country of Origin
Germany
Dimensions
Clamping Dia.
2-20 mm
Outside Dia.
50 mm
Taper Size
PSC63
Details
Spare Garant High-Speed Clamping Nut No. 309610
32
Collet Series
ER32
Coolant Through
Yes
Machining Strategy
HSC
Projection
100 mm
Clamping Range
2 mm
Item
Collet chuck
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 3 µm
Standards
ISO 26623-1
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. Application: For clamping tools with plain shank in ER collets to DIN 6499 Form A and B. Supplied with: Coated high-speed clamping nut. Optional extras: ER collets No. 308881 309434, ER chuck key No. 309680 or 613300, coolant pipe No. 309885 and socket No. 309893. Coolant tube and assembling key for coolant tubes No. 309885 and 309893. Through-coolant: yes Clamping range: 2 20 mm Overhang dimension A: 100 mm External Dia D: 50 mm Spare GARANT high-speed clamping nut No. 309610: 32
