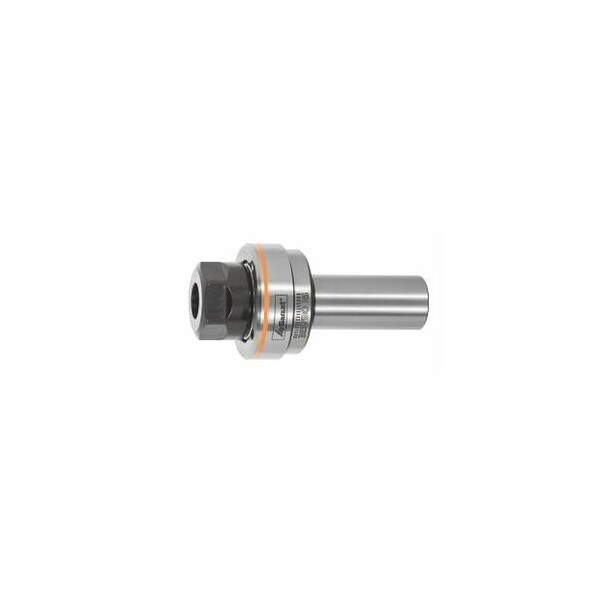

ER Compensating Floating Holder, Shank Diameter: 20mm, for ER Collets: 16
Mfr # 319780 20-16
Zoro # G815232594
product price:Â $561.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
20 mm
Collet Series
ER16
Projection
44 mm
Outside Dia.
42 mm
Coolant Through
Yes
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 319780 20-16
- Zoro #
- G815232594
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Shank Dia.
- 20 mm
- Outside Dia.
- 42 mm
Details
- Item
- Collet Chuck
- Collet Series
- ER16
- Projection
- 44 mm
- Coolant Through
- Yes
- Radial compensation
- 1 mm
Description
Compensating holder with ER collet adaption. Adjustable radial and angular compensation. With through coolant feed. Application: Optimum for compensating alignment errors between workpiece and tool, for instance when reaming or tapping without tension / compression compensation. For use primarily on lathes, but also suitable for milling machines. Through-coolant: yes Shank Dia d: 20 mm Overhang dimension A: 44 mm External Dia D: 42 mm Radial compensation: 1 mm suitable for ER size: 16
