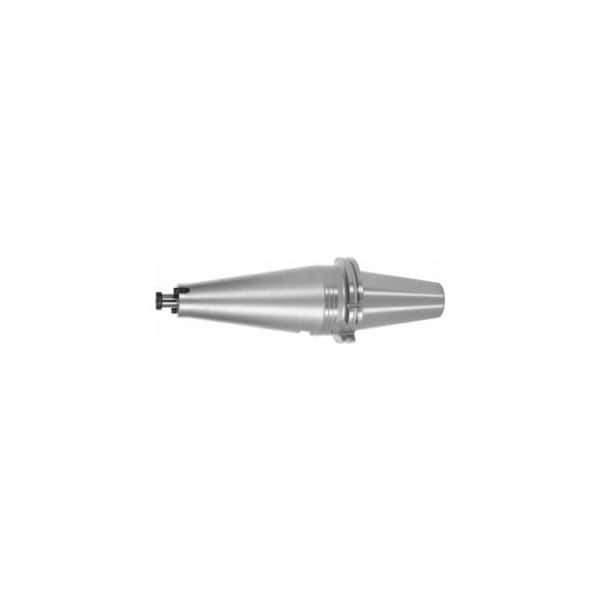

Face Mill Arbor, Tapered, SK 50, Projection: 200, Clamping Diameter: 16mm
Mfr # 301143 16
Zoro # G314775097
product price: $909.99
/ea
Free Shipping & Returns
Key Features
Dia.
38 mm
Projection
200 mm
Concentricity
≤ 6 µm
Machining Strategy
HPC
Balance Quality
G 6.3 at 8,000 rpm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
301143 16
Zoro #
G314775097
UPC #
-
Country of Origin
Spain
Dimensions
Dia.
38 mm
Milling Mandrel Length
17 mm
Outside Dia.
80 mm
Spigot Dia.
16 mm
Clamping Dia.
16 mm
Details
Projection
200 mm
Concentricity
≤ 6 µm
Machining Strategy
HPC
Balance Quality
G 6.3 at 8,000 rpm
Shank Shape
A
Standards
ISO 7388-1; DIN 6357
Vibration
damped
Item
Milling head arbor
Adapter
SK50
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With RFID / Balluffchip bore. Larger collar contact face. Vibration-Damped version, Arbor with vibration-damping core. Advantage: Significantly lower tendency to vibrate. Considerable increase in feed rate. Supplied with: Cutter lock screw and drive dog. Note: Further sizes on request. Overhang dimension A: 200 mm External Dia D: 80 mm Dia D2: 38 mm Milling mandrel length L4: 17 mm
