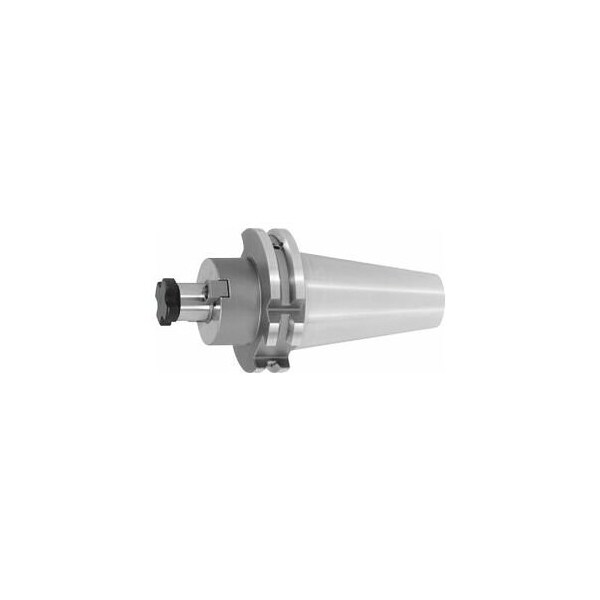

Face Mill Arbor with Cooling Channel Bore, Form ADB, SK 50, Projection: 200, Clamping Dia: 32mm
Mfr # 301154 32
Zoro # G914772946
product price:Â
$
495.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HPC
Projection
200 mm
Taper Size
SK50
Concentricity
≤ 5 µm
Shank Shape
ADB
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 301154 32
- Zoro #
- G914772946
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Taper Size
- SK50
- Spigot Dia.
- 32 mm
- Outside Dia.
- 78 mm
- Clamping Dia.
- 32 mm
- Milling Mandrel Length
- 24 mm
Details
- Machining Strategy
- HPC
- Projection
- 200 mm
- Concentricity
- ≤ 5 µm
- Shank Shape
- ADB
- Cooling Channel Bore
- Not Pluggable
- Standards
- ISO 7388-1; DIN 6357
- Item
- Milling head arbor
- Balance Quality
- G 2.5 at 25,000 rpm
- Suitable Toggle Spanner No. 309840
- 32
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 32
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. Short series. Increased collar contact surface. With RFID/Balluffchip bore. With 4 Cooling Channel Bores. All shanks hard turned for smooth running!. Supplied with: Lock screw. Overhang dimension A: 200 mm External Dia D: 78 mm Milling mandrel length L4: 24 mm Spare Milling cutter lock screw No. 309860 / 309861: 32 Suitable toggle wrench No. 309840: 32
