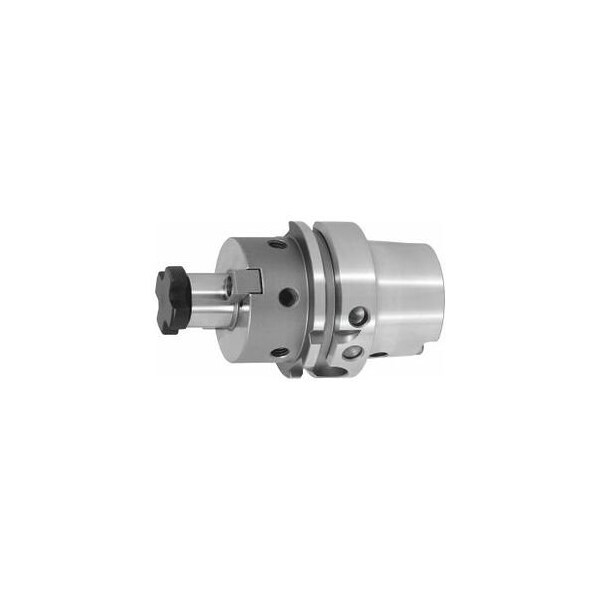

Face Mill Arbor with Cooling Channel Bore, HSK-A 63, Projection: 160, Clamping Diameter: 32mm
Mfr # 306575 32
Zoro # G014775489
product price: $362.99
/ea
Free Shipping & Returns
Key Features
Suitable Toggle Spanner No. 309840
32
Machining Strategy
HPC
Projection
160 mm
Concentricity
≤ 6 µm
Milling Mandrel Length
24 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
306575 32
Zoro #
G014775489
UPC #
-
Country of Origin
Germany
Dimensions
Milling Mandrel Length
24 mm
Taper Size
HSK63A
Spigot Dia.
32 mm
Clamping Dia.
32 mm
Outside Dia.
78 mm
Details
Suitable Toggle Spanner No. 309840
32
Machining Strategy
HPC
Projection
160 mm
Concentricity
≤ 6 µm
Item
Milling head arbor
Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Balance Quality
G 2.5 at 25,000 rpm
Shank Shape
A
Cooling Channel Bore
Not Pluggable
Description
Clamping Dia 40 with 4 tapped holes for drive blocks to DIN 2079. With Balluff/RFID chip bore. Increased collar contact surface. HSK mating faces machined. With Cooling Channel Bores. Application: For clamping shell end Mills and Milling cutter heads. Supplied with: Lock screw Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, toggle wrench No. 309840. Overhang dimension A: 160 mm External Dia D: 78 mm Milling mandrel length L4: 24 mm Spare Milling cutter lock screw No. 309860 / 309861: 32 Suitable toggle wrench No. 309840: 32
