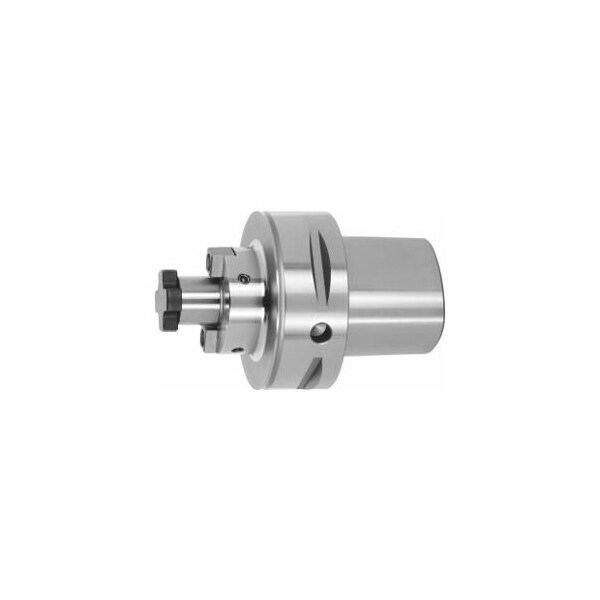

Face Mill Arbor with Cooling Channel Bores, PSC 80 Short, Clamping Diameter: 22mm
Mfr # 308551 22
Zoro # G614773953
product price:Â
$
627.99
/ea
Free Shipping & Returns
Key Features
Suitable Toggle Spanner No. 309840
22
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 6 µm
Projection
50 mm
Cooling Channel Bore
lockable
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 308551 22
- Zoro #
- G614773953
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- PSC80
- Spigot Dia.
- 22 mm
- Outside Dia.
- 48 mm
- Clamping Dia.
- 22 mm
Details
- Suitable Toggle Spanner No. 309840
- 22
- Balance Quality
- G 2.5 at 25,000 rpm
- Concentricity
- ≤ 6 µm
- Projection
- 50 mm
- Cooling Channel Bore
- lockable
- Machining Strategy
- HPC
- Item
- Milling head arbor
- Standards
- ISO 26623-1
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 22
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. Application: For holding shell end Mills and face Mills with cross keyway. Supplied with: Lock screw. Optional extras: Toggle wrench No. 309840, cutter lock screw No. 309860. Coolant tube and assembling key for coolant tubes No. 309885, 309893. Machining strategy: HPC Overhang dimension A: 50 mm External Dia D: 48 mm Spare Milling cutter lock screw No. 309860 / 309861: 22 Suitable toggle wrench No. 309840: 22
