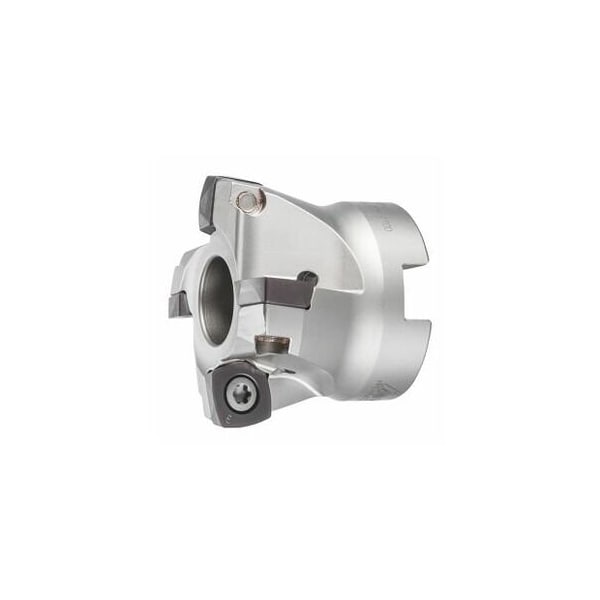

FeedKing High Feed Rate Milling Cutter, with Bore, 42mm Diameter, 4 Inserts
Mfr # 212910 42/4
Zoro # G516120251
product price:Â $404.99
/ea
Free Shipping & Returns
Key Features
Series
FeedKing
Cutting Angle
9°
Overall Length
40 mm
Number of Teeth
4
Insert Screw
219933 (15IP; 3.8 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212910 42/4
- Zoro #
- G516120251
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 40 mm
- Cutting Dia.
- 42 mm
- Ramping Length for αmax
- 25.5 mm
- Max. Cutting Depth
- 1.15 mm
- Free length
- 40 mm
- Mounting Bore Dia.
- 16 mm
- Diameter 3
- 26 mm
Details
- Item
- Copy mill
- Series
- FeedKing
- Cutting Angle
- 9°
- Number of Teeth
- 4
- Insert Screw
- 219933 (15IP; 3.8 Nm)
- Circular interpolation milling ap
- 1.15 mm
- Ramping Angle
- 0.67°
- Circular Interpolation Milling - Dmax
- 82 mm
- Coolant Through
- Yes
- Dia/No. of Cutting Edges
- 42 mm/4
- Axial Rake Angle
- 5°
- Tool Exchange
- PowerCard
- Shank Type
- with bore
- Circular Interpolation Milling - Dmin
- 68 mm
- Fz Helix
- 0.7
Description
Version: Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D3: 26 mm maximum cutting depth ap max: 1.15 mm Overall length Ltot: 40 mm Mounting bore : 16 mm Circular interpolation millingDmin: 68 mm
