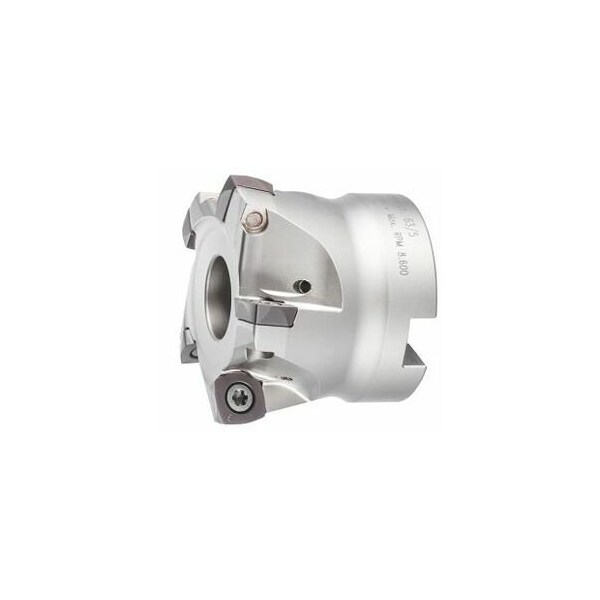

FeedKing High Feed Rate Milling Cutter, with Bore, 63mm Diameter, 5 Inserts
Mfr # 212910 63/5
Zoro # G616120267
product price: $469.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
12°
Series
FeedKing
Cutting Dia.
63 mm
Number of Teeth
5
Overall Length
50 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212910 63/5
Zoro #
G616120267
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
63 mm
Overall Length
50 mm
Max. Cutting Depth
1.8 mm
Diameter 3
42 mm
Ramping Length for αmax
41.5 mm
Free length
50 mm
Mounting Bore Dia.
27 mm
Details
Cutting Angle
12°
Series
FeedKing
Number of Teeth
5
Item
Copy mill
Insert Screw
219800 (20IP; 5.7 Nm)
Ramping Angle
0.41°
Circular interpolation milling ap
1.85 mm
Circular Interpolation Milling - Dmin
105 mm
Circular Interpolation Milling - Dmax
124 mm
Axial Rake Angle
5°
Shank Type
with bore
Coolant Through
Yes
Dia/No. of Cutting Edges
63 mm/5
Fz Helix
0.7
Tool Exchange
PowerCard
Description
Version: Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 5D3: 42 mm maximum cutting depth ap max: 1.8 mm Overall length Ltot: 50 mm Mounting bore : 27 mm Circular interpolation millingDmin: 105 mm
