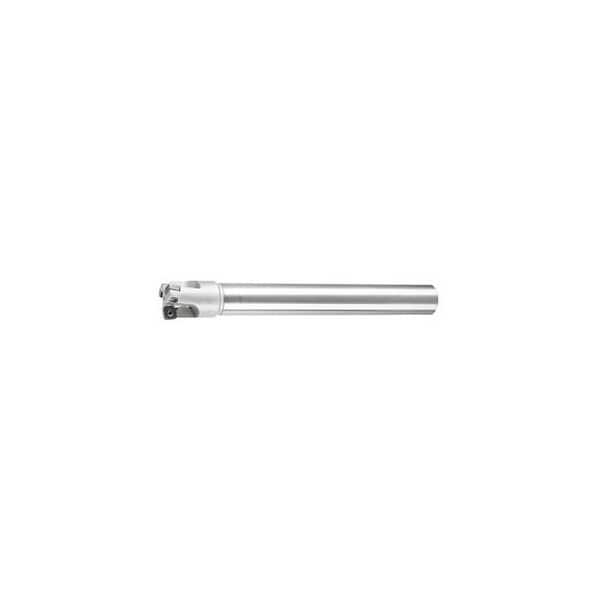

FeedKing High Feed Rate Milling Cutter, with Plain Shank, 25mm Diameter, 3L Inserts
Mfr # 212902 25/3L
Zoro # G316120246
product price:Â
$
387.99
/ea
Free Shipping & Returns
Key Features
Series
FeedKing
Cutting Angle
10°
Shank Dia.
20 mm
Number of Teeth
3
Cutting Dia.
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212902 25/3L
- Zoro #
- G316120246
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Shank Dia.
- 20 mm
- Cutting Dia.
- 25 mm
- Overall Length
- 180 mm
- Max. Cutting Depth
- 0.85 mm
- Ramping Length for αmax
- 11 mm
- Diameter 3
- 12 mm
Details
- Item
- Copy mill
- Series
- FeedKing
- Cutting Angle
- 10°
- Number of Teeth
- 3
- Insert Screw
- 219810 (9IP; 2.2 Nm)
- Circular Interpolation Milling - Dmin
- 37 mm
- Overhang
- 35 mm
- Fz Helix
- 0.7
- Tool Exchange
- PowerCard
- Shank Type
- Plain shank
- Circular interpolation milling ap
- 0.85 mm
- Ramping Angle
- 1.56°
- Axial Rake Angle
- 5°
- Circular Interpolation Milling - Dmax
- 48 mm
- Dia/No. of Cutting Edges
- 25 mm/3L
- Coolant Through
- Yes
- Machining Strategy
- HPC
Description
Version: Dynamic cutter geometry for highest feed rates. Extremely smooth cutting action due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 9IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 3D3: 12 mm maximum cutting depth ap max: 0.85 mm Overhang L1: 35 mm Overall length Ltot: 180 mm ShankDs h6: 20 mm
